Home ProductsAutomatic Oil Press Machine

Coconut Oil Press Machine

I'm Online Chat Now

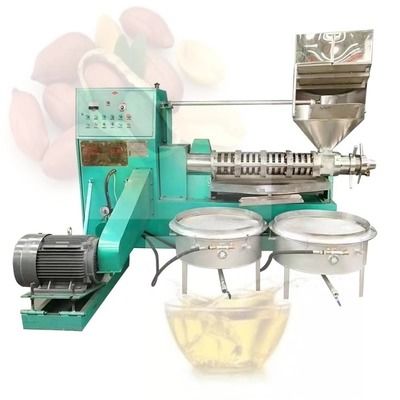

Coconut Oil Press Machine

Coconut Oil Press Machine
Coconut Oil Press Machine

Large Image :  Coconut Oil Press Machine

Product Details:
Place of Origin: CHINA
Brand Name: MIKIM
Certification: CE,IOS
Model Number: 6YL-60,6YL-70,6YL-80,6YL-100,6YL-125,6YL-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $1600.00 - 5000.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Coconut Oil Press Machine

Voltage: 220/380V Condition: New
Warranty: 12 Months Type: Press Machine
Usage: Oil Press Automatic Grade: Automatic
Certification: CE,SGS,CE SGS ISO,EMC,CE/SGS Feature: Easy Operation,automatic Type,High Quality,Personalized Custom,High Cost-effective

Coconut Oil Press Machine

Technical Parameter :

1. Easy operating and small size, saving land, labor and energy consumption

2. Big pressing force in the chamber, making high oil output

3. Long-term continuous work, bring better economic benefit to user

4. Good quality and long durability, made of the most suitable material with refined treatments to ensure more than 10 years using

5. Wearing parts can be dismountable

6. Different design in squeeze chamber for both cold and hot pressing

7. Multi-function combined auto-temperature control and oil vacuum filter

8. Bevel gear technology make good performance when operating



Coconut Oil Press Machine 0

Model 6YL-60 6YL-70 6YL-80 6YL-100 6YL-125
Power 2.2 kw 3 kw 5.5 kw 7.5 kw 15 kw
Capacity 50-60kg/h 70-80kg/h 80-130kg/h 140-280kg/h 300-400 kg/h
Weight 220kg 380kg 780kg 1100kg 1280kg
Dimension(mm) 1200*780*1100 1400*860*1260 1700*1200*1500 1800*1300*1680 2100*1430*1700

Working Principle :


1. Transferred by the triangle belt, the electromotor drives the spiral shaft.


2. The oil plants falls into the first section of the spirals through the feeding part and being carried toward the end of the machine along with the rotating squeeze spirals.


3. As the space between the squeeze spirals are getting smaller, the oil plants frictions with each other as well as the squeeze spirals and the squeeze loops. The pressure in the chest is becoming bigger.


4. During this process, the oil plants are smashed and big amount of heat is generated, the tissue cells are destroyed and the oil is separated from the oil plants and flow out from several outlets.


5. After extracted, the oil plants turns to be cake containing low oil and discharged in thin slices from the end of the machine. The whole oil and residue separation process is completed.


Coconut Oil Press Machine 1

Coconut Oil Press Machine 2

Coconut Oil Press Machine 3


Packaging & Shipping

1.We always use standard export wooden packing,carton box.
2.You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.
3.We cooperate with China best shipping company to get best price and fast delivery.
4.You will get full feedback when your machine is on the way.
