Product Details:
|
Voltage: | 220/380V | Condition: | New |
---|---|---|---|
Warranty: | 12 Months | Type: | Press Machine |
Usage: | Oil Press | Automatic Grade: | Automatic |
Certification: | CE,SGS,CE SGS ISO,EMC,CE/SGS | Feature: | Easy Operation,automatic Type,High Quality,Personalized Custom,High Cost-effective |

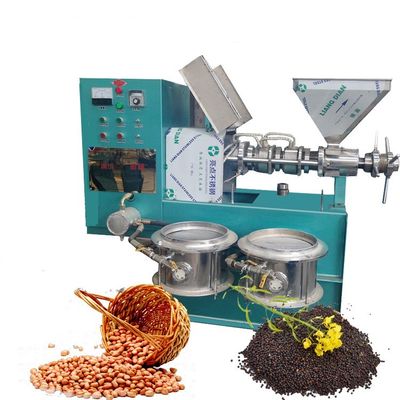

Automatic Cold and Hot Oil Press Machine With Oil Filtering System
Application of Oil Press Machine:
Automatic Cotton Seed Oil Expeller Machine is suitable for rapeseed, peanut, soybean, sunflower, rapeseed, sesame seed, tea seed, walnut, olive, corn germ, rice bran, safflower seed, seeds of hippophae rhamnoides and so on.
Automatic spiral oil press is mainly composed of electric control, automatic heating, adjustment, transmission and vacuum oil filter components
Model | 6YL-60 | 6YL-70 | 6YL-80 | 6YL-100 | 6YL-125 |
Power | 2.2 kw | 3 kw | 5.5 kw | 7.5 kw | 15 kw |
Capacity | 50-60kg/h | 70-80kg/h | 80-130kg/h | 140-280kg/h | 300-400 kg/h |
Weight | 220kg | 380kg | 780kg | 1100kg | 1280kg |
Dimension(mm) | 1200*780*1100 | 1400*860*1260 | 1700*1200*1500 | 1800*1300*1680 | 2100*1430*1700 |
Principle and Structure of Oil Press Machine:
Oil pressing machine is to separate the oil from oil bearing materials by teh pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of oil press machine, they have similar theories in screw expeller pressing. Because the screw type oil press machine is mainly used by extrusion theroy, so it is also called as oil extruder or oil extrusion process.
Advantage of Oil Press Machine :
1.Soybean Oil Press Machine capacity is large, energy-saving and efficient: adopt the design of the alignment of the straight teeth and helical teeth, and realize the maximum energy output.
2.Automatic heating, starting press: heating system of equipment, electronic control, infrared synchronous heating, automatic temperature control, convenient for health, starting up can oil;
3.Soybean Oil Press Machine have Mechanical and electrical integration, beautiful and durable: with high quality steel and castings, stable performance, long service life, simple operation, safe and convenient.
1.We always use standard export wooden packing,carton box.
2.You can choose express, by air,by train or by sea.Always we will give our best recommend based on our experience.
3.We cooperate with China best shipping company to get best price and fast delivery.
4.You will get full feedback when your machine is on the way.
