Product Details:
|
| Name: | Wood Animal Feed Pellet Packing Machine Chicken Feed Bag Packer Machine | Type: | Wood Animal Feed Pellet Packing Machine |
|---|---|---|---|
| Weight (KG): | 2000 | Function: | Filling, Sealing, Counting |
| Driven Type: | Pneumatic | Voltage: | 220V 50hz/60hz |
| Dimension(L*W*H): | 3100x1200x3000mm | Gas Source: | 0.4-0.65Mpa |
| High Light: | 5kg wood pellet packing machine,weighing and filling machine CS,pneumatic packing machine 0.65Mpa |
||

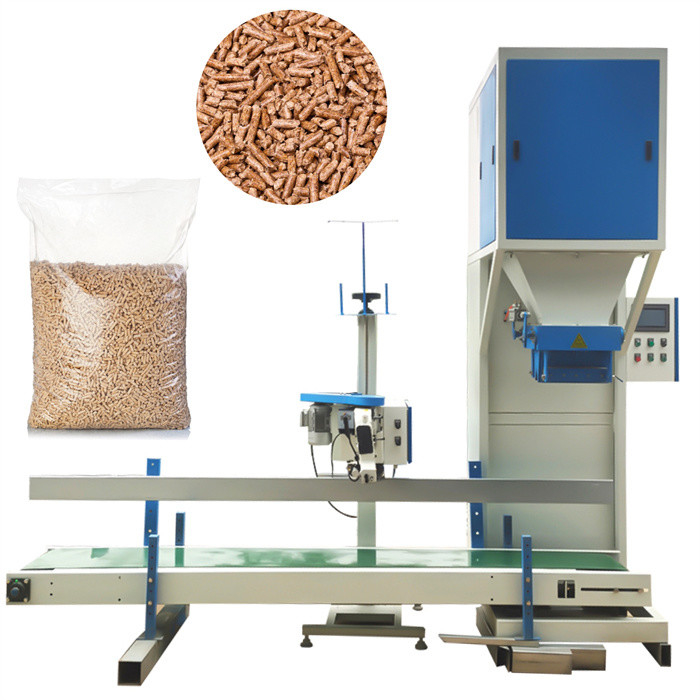

Wood Animal Feed Pellet Packing Machine Chicken Feed Bag Packer Machine
The quantitative filling and packaging scale machine is mainly composed of four parts: automatic weighing, conveying equipment, bag sealing equipment and computer control. It has the characteristics of reasonable structure, beautiful appearance, stable operation, energy saving and power saving, easy operation and accurate weighing. The main engine adopts dual-frequency spiral propulsion, dual-barrel measurement, advanced digital frequency conversion control technology, sample processing technology, and anti-interference technology to achieve automatic error compensation and correction.
| product name | Wood pellet packing machine chicken feed bag packer machine |
| Product Features | Automatic filling weighing and conveying, sewing bags |
| Weighing range | 5-100kg |
| Packaging speed | Weighing: 4-8 bags / minute |
| Bag type | Plastic, paper bag, woven bag |
| Accuracy | Weighing error: 0.2-2% |
| Gas source | 0.4-0.65Mpa |
| power supply | 380v/220v/50hz |
| material | Carbon steel / stainless steel |

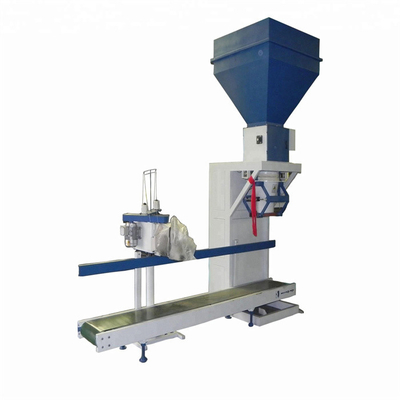

Detailed parts of pellet packing machine
Our packaging machine use the PLC system of 10" full color touch screen panel, dual English/Chinese interface.The machine installation 3pcs of high precision load cell provide high weighing accuracy, also the bag clamping device installation 2pcs of cylinder and 2pcs of sensor switch, bag clamped more tighter, bag giving more safe.
The bagging machine working with the automatic bag sewing machine with automatic start/off and single needle double thread automatic cutter, the sewing data can be display and record.

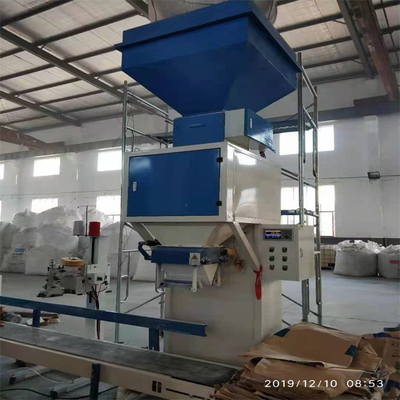

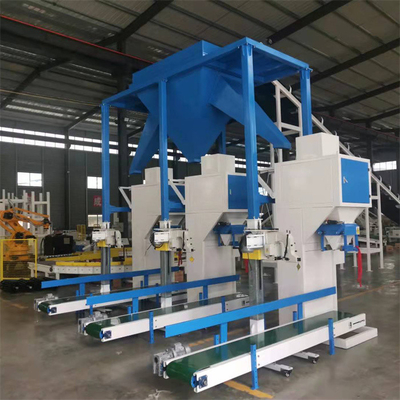

Packing Machine Structure & Working Process
The materials will through the feeding parts(connect hopper) into the gravity feeder then into the weighing hopper,the weighing hopper installation 3pcs load cell to weighing, manual giving the bag to the packing machine bag clamp device and touch the sensor, the bag will automatic clamped, the finished weighing materials discharge into the bag, bag release and on conveyor to the sewing machine for bag closed by thread stitching.
Function & Features
* Easy to operate, compact structure, fast response and low failure rate.
* Adopt imported load cell, pneumatic element and detective element, with a self-reduction and safety devices.
* Super filter function of anti-vibration, anti-interference,make sure weighing process stable and accurate.
* 3 stage cylinder, one single cylinder achieves four-station moves, compact structure, fast response and low failure rate
* High-precision controller, with auto error correction,auto alarm for over and under tolerance, auto fault diagnosis function.
* Reserved RS232/485 serial port can be used with the external management system for data communication.
* Super filter function of anti-vibration, anti-interference,make sure weighing process stable and accurate
* One key recovery function ,press the reset key back to the default parameters.
Packing & Delivery
Packing Details: Packing, polywood boxes.Paste shipping marks according to customers' requirement
Lead time: 15-30 days after received the deposit
