IP67 0.8MPa High Speed Automatic Bag Filling Machine 25kg HMI Color Touch Screen

I'm Online Chat Now

IP67 0.8MPa High Speed Automatic Bag Filling Machine 25kg HMI Color Touch Screen

IP67 0.8MPa High Speed Automatic Bag Filling Machine 25kg HMI Color Touch Screen
IP67 0.8MPa High Speed Automatic Bag Filling Machine 25kg HMI Color Touch Screen IP67 0.8MPa High Speed Automatic Bag Filling Machine 25kg HMI Color Touch Screen IP67 0.8MPa High Speed Automatic Bag Filling Machine 25kg HMI Color Touch Screen IP67 0.8MPa High Speed Automatic Bag Filling Machine 25kg HMI Color Touch Screen

Large Image :  IP67 0.8MPa High Speed Automatic Bag Filling Machine 25kg HMI Color Touch Screen

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: DB-5A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $4000.00 / Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

IP67 0.8MPa High Speed Automatic Bag Filling Machine 25kg HMI Color Touch Screen

Description
Name: High Speed Pellet Fertilizer Sand Compost Weighing Filling Bagging Pellet Packing Machine Type: Filling Bagging Pellet Packing Machine
Power: AC 220V/50Hz Function: Filling, Sealing, Counting
Driven Type: Pneumatic Voltage: 220V 50hz/60hz
Dimension(L*W*H): 3100x1200x3000mm Warranty: 1 Year
High Light:

IP67 automatic bag filling machine

,

25 kg bag filling machine HMI

,

0.8MPa high speed packaging equipment

High Speed Pellet Fertilizer Sand Compost Weighing Filling Bagging Pellet Packing Machine

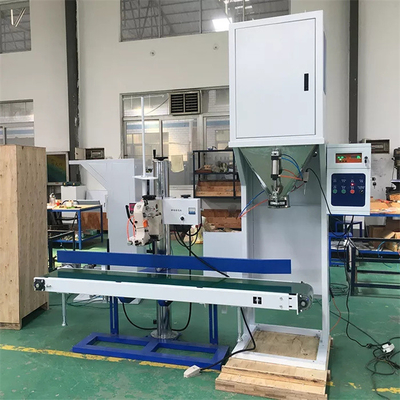

This pellet packing machine is controlled by computerized instrument and easy to operate & manage. For example, weighing packing 25kg, you just need to input it 25kg as the target weight and manually place the ready bag to the outlet of the machine, then the automatic clamping device will clamp the bag close to the body of outlet.



High Speed Pellet Fertilizer Sand Compost Weighing Filling Bagging Pellet Packing Machine

And the machine will automatic weighing and filling 25kg, then, automatic unloading the bag. Then, the belt conveyor will transport the filled bags to the sewing machine for stitching the bag top.



Main parameter of Rice/Pellet Packaging Machine:

Model Packing range (kg/bag) Power

Error

(F.S)

Speed

(bags/min)

Air supply

(MPa)

Division Value (g)
DB-5A 1-5 AC 220V/50Hz 0.1%-0.2% ≥ 6 0.4-0.8 1-5
DB-10A 1-10 AC 220V/50Hz 0.1%-0.2% ≥ 6 0.4-0.8 1-10
DB-25A 5-15 AC 220V/50Hz 0.1%-0.2% ≥ 6 0.4-0.8 5-10
DB-50A 5-25 AC 220V/50Hz 0.1%-0.2% ≥ 6 0.4-0.8 5-10
DB-100A 15-50 AC 220V/50HzAC 0.1%-0.2% ≥ 6 0.4-0.8 10-20


Packing Machine Structure & Working Process

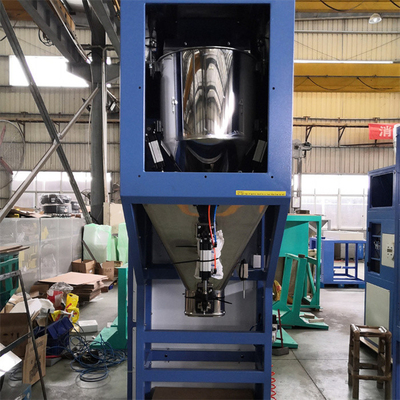

The materials will through the feeding parts(connect hopper) into the gravity feeder then into the weighing hopper,

the weighing hopper installation 3pcs load cell to weighing, manual giving the bag to the packing machine bag clamp

device and touch the sensor, the bag will automatic clamped, the finished weighing materials discharge into the bag,

bag release and on conveyor to the sewing machine for bag closed by thread stitching.



Futures

1, Installation 3pcs load cell, each load cell max weight 200kg, IP67 grade, high weighing accuracy, working more stable

2, Dual control system, the CHIMEI weighing instrument and PLC control system

3, Color touch screen HMI, easy operation

4, PLC system operation by 10" touch screen

5, Installation 2pcs of proximity switch and 2pcs cylinder, bag clamp more tighter, more safe

6, Automatic bag sewing and sewing conveyor speed adjustable

7, Parts of famous brand, such as Delta, Schneider, CHNT, AirTAC



Application range of pellet packing machine:

The pellet packing machine is applied to quantitative automatic weighing, filling, kneading, accumulating weigh and times, stitching and conveying with manual assistant for powder material in the flour factory or material such as pellet shape.
