Big Bag Dog Food Pellet Packaging Machine 30Kg/ Bag 0.5Nm3/ Min 95L

I'm Online Chat Now

Big Bag Dog Food Pellet Packaging Machine 30Kg/ Bag 0.5Nm3/ Min 95L

Big Bag Dog Food Pellet Packaging Machine 30Kg/ Bag 0.5Nm3/ Min 95L
Big Bag Dog Food Pellet Packaging Machine 30Kg/ Bag 0.5Nm3/ Min 95L Big Bag Dog Food Pellet Packaging Machine 30Kg/ Bag 0.5Nm3/ Min 95L Big Bag Dog Food Pellet Packaging Machine 30Kg/ Bag 0.5Nm3/ Min 95L Big Bag Dog Food Pellet Packaging Machine 30Kg/ Bag 0.5Nm3/ Min 95L

Large Image :  Big Bag Dog Food Pellet Packaging Machine 30Kg/ Bag 0.5Nm3/ Min 95L

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: MST-DGS-50K
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $4000.00 / Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Big Bag Dog Food Pellet Packaging Machine 30Kg/ Bag 0.5Nm3/ Min 95L

Description
Name: Big Bags Dog Food Pet Good Bird Food Animal Feed Pellet Packing Machine Granules Filling Packing Sewing Machines Type: Animal Feed Pellet Packing Machine
Filling Quantity: 5-50Kg/bag Function: Filling, Sealing, Counting
Driven Type: Pneumatic Voltage: 220V 50hz/60hz
Dimension(L*W*H): 3100x1200x3000mm Warranty: 1 Year
High Light:

0.5Nm3/ min Pellet packaging machine

,

dog food packaging machine 95L

,

big bag packaging machine 30Kg/ bag

Big Bags Dog Food Pet Good Bird Food Animal Feed Pellet Packing Machine Granules Filling Packing Sewing Machines

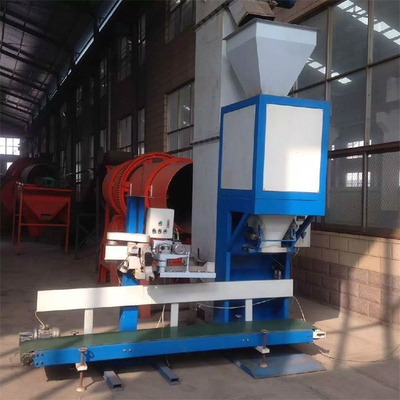

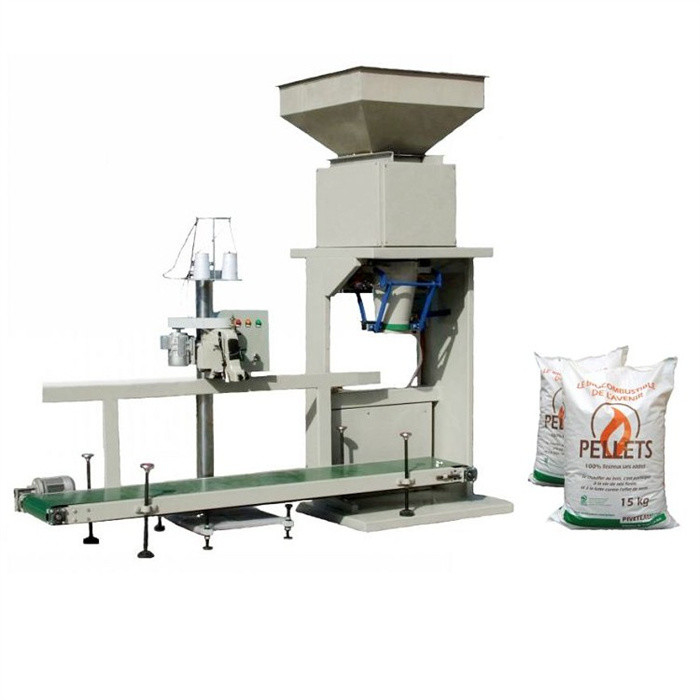

The pellet packing machine is an intelligent packaging machine developed by our factory; it is specialized for the granular materials and irregular materials. Using pneumatic gate feeding or belt feeding modes, and it is with advanced electrodeless frequency conversion technology. The machine unit consists of automatic granule weighing filling machines, conveyor equipment, sewing equipment, feeding equipment. It is with reasonable structure, beautiful shape, easy operation, and accurate weighing characteristics.



Big Bags Dog Food Pet Good Bird Food Animal Feed Pellet Packing Machine Granules Filling Packing Sewing Machines

Specification of pellet packing machine

Model MST-DGS-50K MST-1DC-50K MST-2DC-50K
Filling Quantity 5-50Kg/bag 5-50Kg/bag 5-50Kg/bag
Error ±0.2% ±0.2%-0.3% ±0.2%-0.3%
Packing speed 4-6 bags/min 5-10 bags/min 6-20 bags/min
Driving method Pneumatic Pneumatic Pneumatic
Air pressure 0.4-0.6Mpa 0.4-0.6Mpa 0.4-0.6Mpa
Air consumption 0.5Nm3/min 0.5Nm3/min 0.5Nm3/min
Weighting method Clamp bags weighing One Hopper weighing Double Hoppers weighing
Hopper capacity / 95 liters 95 liters
Power 2.2Kw 3Kw 4Kw
Voltage 220V/380V 50/60HZ 220V/380V 50/60HZ 220V/380V 50/60HZ
Dimension 800*900*2200mm 950*1000*2700mm 2000*1200*3200mm



Our products are widely used in chemical, pharmaceutical and food industries: such as peanuts,walnuts,pistachios nuts,dried sea shrimp,powdered pork floss,coffee beans,sunflower seeds,rice,spice granule,peanuts,MSG,sugar,Fish Feeds,cat food, dog feed, pet feed, animal manure, glucose,grain, corn, fertilizer, animal feed, Pellet additive, Popcorn,crispy rice,Frozen French Fries,Corn Puff / Nik Naks, spirulina cereal and etc.



Vacuum packing machine Feature:

1). New controller with high precision, working stable, can display the total weight, number of package, easy operation.
2). The adaptive software, having the function of automatic control parameters setting, automatic drop revising, over-weight
warning and auto-diagnosis.
3). Wide packing range, high precision, it can match well with conveyor and sewing machine.
4). Products using imported sensor, pneumatic actuator, easy maintenance and non-pollution.
5). The main material body is carbon steel, with painted plastic. And material contact part is stainless iron, corrosion
resistance, long service life.
6). communication interface can be offered if need, realization of data communication with PC.



Packaging & Shipping

PACKAGE
Standard export wooden case packing, fit for multiple handing and long distance air/ marine shipping.

DELIVERY TIME
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order



Our company is specialized in the research, development, production and sales of various types of powder, granule, liquid, paste quantitative filling production equipment, automatic weighing batching production line equipment, all kinds of Vertical Form Fill Seal Packaging Machines, Premade Bag Filling Sealing Packaging Machines and Horizontal Packaging Machines.



Our products have enjoyed a good reputation for their quality, quick delivery, competitive price and long term services for our customers reliability and efficiency. To help specialized customers with marketing, we also offer OEM services and customized machine designs. Our products have been sold to more than 40 countries and regions with advantaged function to meet for different demand in both national and international area.
