Small Quantitative Coffee Bean Packing Scale Machine Dustproof 750kg

I'm Online Chat Now

Small Quantitative Coffee Bean Packing Scale Machine Dustproof 750kg

Small Quantitative Coffee Bean Packing Scale Machine Dustproof 750kg
Small Quantitative Coffee Bean Packing Scale Machine Dustproof 750kg Small Quantitative Coffee Bean Packing Scale Machine Dustproof 750kg Small Quantitative Coffee Bean Packing Scale Machine Dustproof 750kg Small Quantitative Coffee Bean Packing Scale Machine Dustproof 750kg

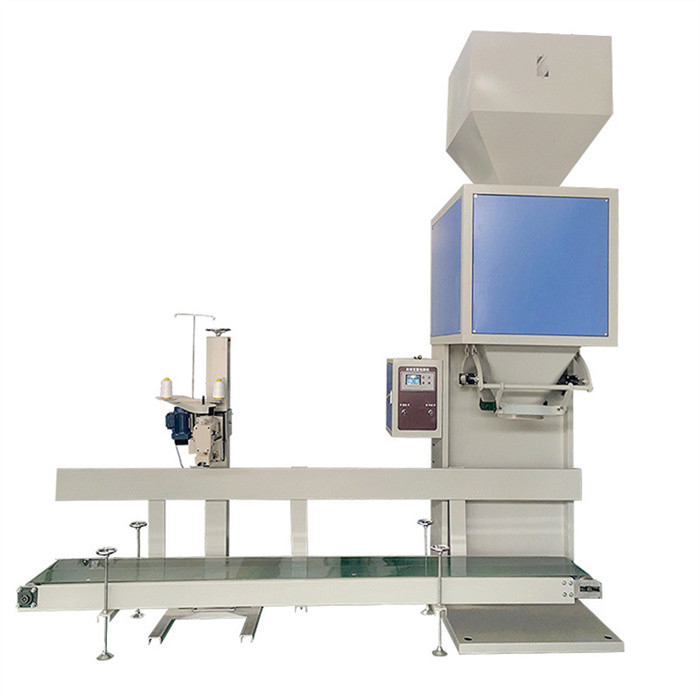

Large Image :  Small Quantitative Coffee Bean Packing Scale Machine Dustproof 750kg

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: DCS-50A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $4000.00 / Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Small Quantitative Coffee Bean Packing Scale Machine Dustproof 750kg

Description
Name: Automatic Quantitative Coffee Bean Weighing Pellet Packing Machine Type: Weighing Pellet Packing Machine
Weight (KG): 750 Function: Filling, Sealing, Counting
Driven Type: Pneumatic Voltage: 220V 50hz/60hz
Dimension(L*W*H): 3100x1200x3000mm Warranty: 1 Year
High Light:

packing scale machine dustproof

,

Quantitative Coffee Bean Packing Machine

,

small scale packaging machine 750kg

Automatic Quantitative Coffee Bean Weighing Pellet Packing Machine



This pellet packing machine is a smart packaging machine scale developed by our company for granular and irregular feed pellet. It adopts pneumatic gate feeding or belt feeding mode and advanced stepless frequency conversion technology.



Automatic Quantitative Coffee Bean Weighing Pellet Packing Machine



Specification of pellet packing machine

Model DCS-50A
Weighing extent 1-5, 5-25, 25-50kg/bag, customized needs
Packing capacity 300-400bags/h
Scale interval 10g
Accuracy grade X(0.2)
Power 1.1kW, 380V, 50Hz
Air 0.4-0.6MPa, 1m3/h
Overall height 2600mm
Machine weight 750kgs



Packing machine main machines:
composed of four parts: automatic weighing and packaging machine, conveying device, sewing machine and feeding machine.

The utility model has the advantages of reasonable structure, beautiful appearance, convenient operation and accurate weighing.



Application:

The machine is mainly suitable for quantitative packaging of granular, granular powder, strip, block, tobacco and other materials. Such as: fertilizer, feed, Chinese medicine decoction pieces, Chinese medicine granules, premix, washing powder, snack food, candy, melon seeds, peanuts, dried fruit, roasted seeds and nuts, salt, monosodium glutamate, chicken essence, seeds, grain, hardware and other granular materials Quantitative filling packaging.



Feature

1) It has been improved the inner design turret, and imports beeline bearings for each machine from Japan directly, so that it can be sure a longer usage-life and precision of machine.
2) The working station cam runs under the good lubricating condition, and maintains the inner lubrication of cam slot to a full extent, increasing the pressure pulverization oil pump, thus extends the operation life of the spare parts.
3) It adopts enlarged Cam, LTPM CHINA has become the one who matches the cam of RU100 to Ru83, while it enhances the stability of the machines and extends the life of the machines to a great extent.
4) It is controlled by the computer, has a stepless timing with the frequency-conversion, the numeral showing makes an easy operation and clear appearance.
5)Adopt Plane Spring for filling powder, this type spring can afford TWO BILLION TIMES Pressing, but never changed overall dimension. So it makes the Weight of Powder filling in an accuracy number.
6)Automatic Capsule Switch operated by Touch Screen avoid Dangerous Accident happens when open the switch by hand into the working station.
7)Our quality machine use Tanshing Cam box, in automatic filling machine area Honest Business is the most important,Because Customers can't see the mechanical parts inside. So our company can promise we use the real type but never "labeling type".
