Biochar Bamboo Charcoal Making Machine Wood Logs 1.68t 3m3

I'm Online Chat Now

Biochar Bamboo Charcoal Making Machine Wood Logs 1.68t 3m3

Biochar Bamboo Charcoal Making Machine Wood Logs 1.68t 3m3
Biochar Bamboo Charcoal Making Machine Wood Logs 1.68t 3m3 Biochar Bamboo Charcoal Making Machine Wood Logs 1.68t 3m3 Biochar Bamboo Charcoal Making Machine Wood Logs 1.68t 3m3 Biochar Bamboo Charcoal Making Machine Wood Logs 1.68t 3m3 Biochar Bamboo Charcoal Making Machine Wood Logs 1.68t 3m3

Large Image :  Biochar Bamboo Charcoal Making Machine Wood Logs 1.68t 3m3

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: 120,170,190
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $2000.00 - 2400.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Biochar Bamboo Charcoal Making Machine Wood Logs 1.68t 3m3

Description
Name: Bamboo Biochar Making Machine Wood Logs Coconut Shell Charcoal Carbonizing Furnace For BBQ Type: Briquette Machine
Warranty: 12 Months Carbonization Time: 6-8h
Dimension(l*w*h): 1800*600*1600mm Weight: 1.68t
Diameter Of Briquettes: 50~80mm Customized Spare Parts: Screw Propreller,mold Cyclinder
High Light:

1.68t bamboo charcoal making machine

,

3m3 bamboo charcoal making machine

,

biochar making machine Wood Logs

bamboo biochar making machine wood logs coconut shell charcoal Carbonizing Furnace for BBQ



Charcoal carbonizing furnace is a kind of new air flow type carbonization stove, can also be called as charcoal carbonization stove. It is used to make charcoal from wood and all kinds of biomass. It adopts new advanced hot air carbonizing technology, greatly improves the carbonization rate to 99%, compared with the carbonization rate 80% of traditional carbonization stove! Its charcoal making time is short .This kind stove is safe and easy to operate,the charcoal made from the carbonizing furnace can be the material of activated carbon. thus it is very famous among many industries like charcoal making industry and boiler industry.

bamboo biochar making machine wood logs coconut shell charcoal Carbonizing Furnace for BBQ



Technical parameters

Model 120 170a 170b 190
Capacity 2000kg/24h 4000kg/24h 7000kg/24h 10500kg/24h
Dimension 2.86*1.6*2.1m 2.85*2.1*2.1m 4.6*2.1*2.1m 5.5*2.2*2.2m
Weight 1.68t 3t 3.5t 6.8t
Inner pot diameter 1.2m 1.7m 1.7m 1.9m
Inner pot length 2.6m 2.2m 4.4m .3m
Inner pot length 3m3 5m3 10m3 15m3
Carbonization time 6-8h



The smokeless charcoal stove is special used for wood log, jute stick and other long rod-type biomass characteristics, adopts horizontal structure, cart entry and exit raw material and the advanced hot gas dry carbonization process technology, using a unique carbonization flue gas (volatile hydrogen material and tar, etc.) Back Burning Technology, make full use of the flue gas produced by carbonization process, meet the thermal needs of carbonization furnace itself, greatly increase the carbonization rate, the carbonization rate increased from 80% to more than 95%, and easy to operate, safety and environmental protection, high production efficiency, can save a lot of energy, is the ideal equipment for carbonizing the long rod type biomass material. Combination mode of multiple devices, use carbonized flue gas in tandem, can reduce fuel consumption during carbonization production and improve the enterprise benefit.



Characteristics of carbonization furnace for charcoal :
New type of carbonization equipment, production higher than general furnace, fast speed, high carbon, simple operation
With smoke purification device, can store tar, no leakage, long service life;
Suitable for wood, logs, mechanism charcoal, nut shell, bamboo, etc, different shaps biomass raw material.



Advantages of carbonization furnace
a. No polution: there are two reasons : the frog and the gas flow will be recycle from the smoke recycle device and use for heating the kiln again. We install a special device that can use the liquid gas as the energy to heating the carbonization kiln, and it will not produce any smoke.

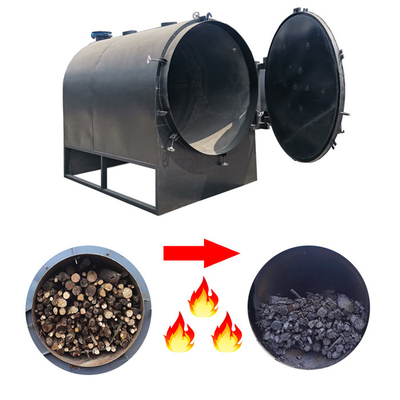

b. Carbonize time more shorter: This type have three inner stove, when one inner stove finished (6- 8hours ) , use the hoist tools lift the inner stove out let it cooled naturally, at the same time, lift the other one in , 3 inner stove can work continuously. 24 hours can carbonizing 3-4 inner stove.

c. Easy operate: One people can control 2-3set, but need the crane for help; When one inner stove have been finished carbonization, use the hoisting tools hoist the inner stove from the outer stove, then let the inner stove natural cooling, at the same time, put another inner stove into the outer stove, which will save a lot of cooling time, so the productivity effect increase a lot.
