Product Details:
|
| Name: | Chinese Chaff Cutter Lowest Chaff Cutter Machine Animal Feed Chaff Cutter | Type: | Chaff Cutter |
|---|---|---|---|
| Main Machine Weight: | 55kg (without Driven Engine ) | Voltage: | 220v/380v |
| Dimension(l*w*h): | 2200*600*920mm | Condition: | New |
| Weight: | 500 Kg | Application: | Wheat Stalk |
| High Light: | anti erosion animal feed chaff cutter,Chaff Cutter Machine 2200*600*920mm,mini chaff cutter machine ODM |
||

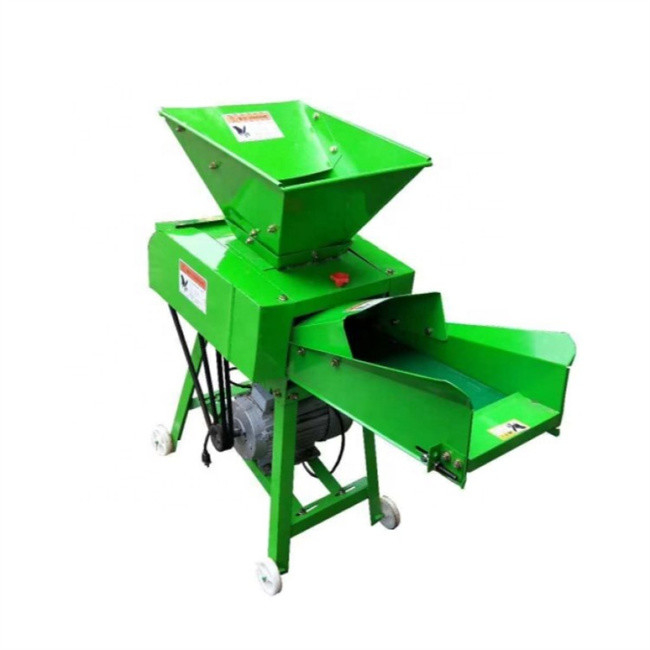

Chinese chaff cutter lowest chaff cutter machine animal feed chaff cutter
Product Introduction :
This model agricultural machine chaff cutter machine widely used for animal feeding, this machine more suitable for family use and small farm use, with wheels easy to be moved anywhere it is needed. and also machine can be driven by an electric motor or diesel engine or gasoline engine for needs. and also for adjusting the cut grass length, we have the belt adjust and the gear adjusts for either convenient for you.
Features of Mini Cheaper Agricultural Farm Grass Animal Feed Chaff Cutting Making Fodder Forage Chaff Cutter Machine Price List :
1. Chaff Cutter can be driven by high quality Electric Motor (With Copper Wire), Diesel Engine, Petrol/Gasoline Engine, and tractor PTO for your more choice according to your local situations;
2 Feeding Rollers in our Chaff Cutter are made by Casting Iron with longer service life;
3 Discharging size can be adjusted easily;
4 We use the high quality blades for our Chaff Cutter, not the ordinary blades, which is specially for exporting with longer service life, and is 3 times of the ordinary blades' service;
5 High-strength bolts are used for connection to provide safe and reliable operation in our Chaff Cutter;
6. Steel frame structure, small volume, light weight, convenient to move;
7. Unique adjustable speed gear box structure, easy and precise adjustment of grass length, reliable sealing, good lubrication
8. Advanced feeding and conveying mechanism is controlled by a switch, easy to switch
There are mainly two types chaff cutter here,one type is 4 blades chaff cutter,another type is all-in-one kneading machine:
| Item Name | Chaff Cutter |
| Model No. | 9ZP-0.4 |
| Capacity | 0.8-1.0tph |
| Matched Electric Motor Power | 2.2/3.0kw |
| Matched Diesel Engine Power | 4.0hp |
| Matched Gasoline Engine Power | 7.0HP |
| Voltage | 220v/Customized |
| Blades Quantity | 4pcs/6pcs |
| Suitable Raw Material for Processing | all kinds of grass, millet straw, rice straw, corn silage, wheat stalk, corn plants, etc. |
| Cutting Length | 10/15mm |
| Spindle Speed | 1060r/min |
| Inlet Feeding Rollers Rotation Speed | 400r/min |
| Feeding Inlet Width | 235mm |
| Inlet Type | Automatic type or Manual type for your different choices |
| Main Machine Weight | 55kg (without driven engine ) |
| Overall Dimension | 1300(L)*1150(W)*800(H)mm |
| Packing Size | 600(L)*500(W)*390(H)mm |
| Electricity Consumption | 10 Kw.t/h |
FAQ
1. Are you manufacturer?
Yes, we are. Welcome to visit our factory.
2. Can you change the machine voltage as our request?
Yes, we can.
3. How about your after-sales service?
Our engineer can go outside to install and train your workers to operate the full machine line.
4. Warranty time of your machine?
1 year except for consumable spare parts.
5. How about delivery time of your machine?
Generally it needs 5-7 days for big machines or producing line,and it will be much longer but within our negotiated delivery time.
Package
1.wood shaving machine italy will be packed in standard and quantities boxes ,the production will have a safe and complete journey from our factory to your place.
2.Packaging details standard export wooden case or in container.
Shipping
1.We will serve your shipping method about ocean transport ,air lift ,freights and so on.
2.The delivery time is usually 7-15 working days upon receipt of your payment.
