Automatic Forage Grass Feed Pellet Making Machine PLC Control 500 To 1500KG/ H

I'm Online Chat Now

Automatic Forage Grass Feed Pellet Making Machine PLC Control 500 To 1500KG/ H

Automatic Forage Grass Feed Pellet Making Machine PLC Control 500 To 1500KG/ H
Automatic Forage Grass Feed Pellet Making Machine PLC Control 500 To 1500KG/ H Automatic Forage Grass Feed Pellet Making Machine PLC Control 500 To 1500KG/ H

Large Image :  Automatic Forage Grass Feed Pellet Making Machine PLC Control 500 To 1500KG/ H

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: MK Series feed pellet machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $30,000.00 / Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Automatic Forage Grass Feed Pellet Making Machine PLC Control 500 To 1500KG/ H

Description
Name: Automatic PLC Control 500-1500 KG/H Forage Grass Feed Pellet Machine For Pellet Making Type: SZLH250
Capacity (t/h): 0.4-1 Condition: New
Weight: 2000 Kg Dimension(l*w*h): According To The Actual
Capacity: As Clients Requested Advantage: High Efficiency
High Light:

feed pellet making machine PLC

,

grass pellet making machine 1500KG/ H

,

500KG/H forage pellet mill

Stainless Steel Ring Die and Bearing

1. Structure: Compact structure, easy operation, installation and maintenance;

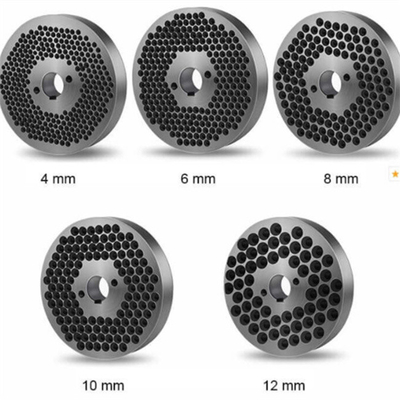

2. Ring Mode: Equipped with different aperture ring modes;

3. Conditioner: Standard and large stainless steel conditioner can be chosen;

4. Special Design: Stainless steel discharge chute and door closure, Anti-corrosion and durable;

5. Feeder: Strong full stainless steel feeder, feed smoothly, to prevent the plugging material;



Technical Parameters of Feed Pellet Making Machine:

Type

Power of Main Moter(kw)



Capacity (t/h) Power of Feeding Motor(kw) Power of Conditioner(kw) Diameter of Ring(mm) Size of Finished Pellets(mm)
SZLH250

11×2



0.4-1 0.75+1.5 2.2 250 φ6-10
SZLH350

30×2



3-5 0.75+1.5 2.2 350 φ6-10
SZLH420 45×2 3-12 0.75+2.2 5.5 420

φ6-10

SZLH520 55×2 5-18 0.75+2.2 7.5 520

φ6-10



Application of Grass Feed Pellet Machine

1. With grain,corn,wheat ,sawdust, crop straw (corn stalks, sorghum stalk, soybean stalk, cotton stalk, rape straw, peanut seedlings, and sunflower stalk), rice husk, grass, shrubs, branches, wood cut-off head, bamboo debris, bagasse and the like as raw materials; through high-temperature extrusion, the finished pellets are of cylindrical shape, spherical shape, and honeycomb shape,used for animal feed and fuel.

2.Main drive equipped with dual motor drive belt, ring die with fast-equipped hold hoop.
Whole transmission parts (including motor) chooses high-quality bearings made in Swiss, Japanese to ensure the transmission efficient, stable.

3.Adopting international advanced technology: German gun drill and vacuum furnace heat manufacturing process, with high-quality and long service life alloy steel ring die to ensure the pellets smooth and of high quality.

Advantages of cat feeding machine:
1. Simple structure, easy to clean and maintain.
2. Spare parts are easy to change, less cost for rollers and dies.
3. Simple operating, just 1 or 2 workers are OK.
4. Be able to change new die and rollers faster to save time to produce pellets.
5. Small and light weight, which can be used in home,small farm and light industrial.
6. Visibility to viewing the material during pelleting is the best way to fix problems.

Automatic Forage Grass Feed Pellet Making Machine PLC Control 500 To 1500KG/ H 0







Q1: What is your machine guarantee?
A1: Usually the guarantee period is for 1 year
Q2:What's the machine voltage or power of your machine?
A2: 220V,50HZ, single phase, or 380V, 50HZ, 3 phase.

or customized by your demand
Q3:How to install the machine or if we meet problem when operate,what can you do for us?
A3:We can instruct the installation by vedio, email or picture, or we can arrange our technical aboard

Q4: What about the shipping methods?
A4: FedEx, TNT, DHL or EMS; by air or by sea
Q5: How much does it cost to ship to my country?
A5: It depends on seasons. Shipping cost is different in different seasons. You can consult us all the time.
Q6: What’s your delivery time?
A6: Usually we produce within 7-15days after the payment confirmed.
