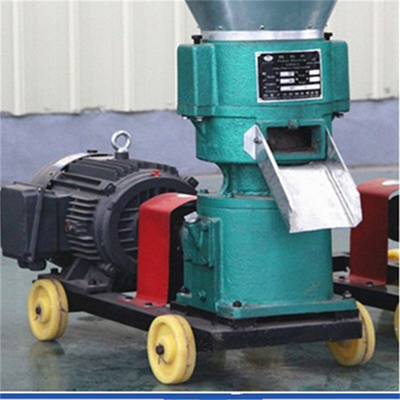

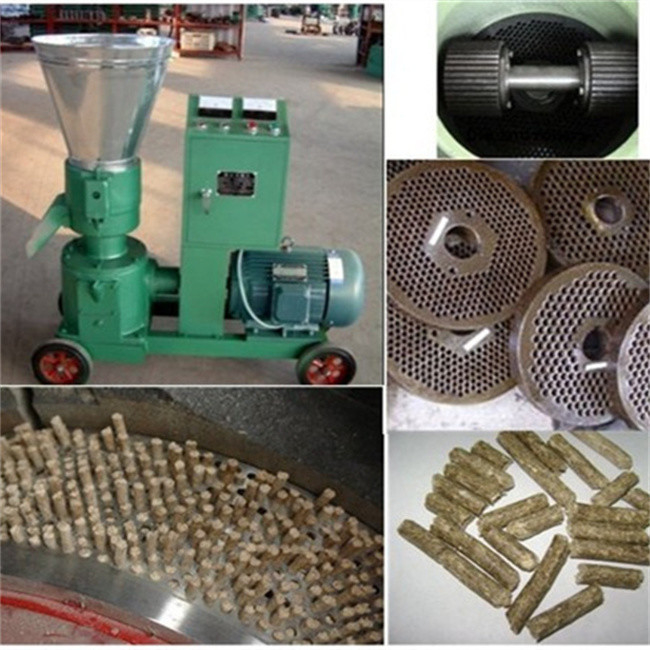

Product Details:
|
| Name: | Feed Pellet Making Machine Price Chicken Food Making Machine Animal Feed Pellet Machine | Application: | Poultry Farm |
|---|---|---|---|
| Voltage: | 220V/380V/customized | Capacity: | 650KG/H |
| Weight: | 300kg | Dimension(l*w*h): | 1180*560*950 |
| Advantage: | High Efficiency Easy Operation | Final Product: | Feed Pellet |

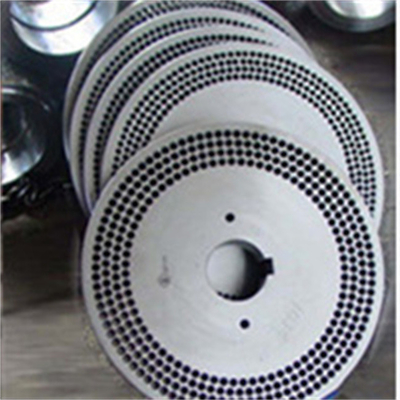

| Function: | Pellet Processing Machine | Spare Parts: | Flat Die+ Rollers |
| High Light: | 22KW chicken feed pellet making machine,AC220V chicken food making machine,22KW pellet feed making machine |
||
|
Specification of CM-A&B Pellet Feed Making Machine
|
||||
|
Model
|
Power(KW
|
Capacity(kg/h)
|
Weight(kg)
|
Dimension(mm)
|
|
CM-25A
|
22
|
1000-1200
|
650
|
1180*560*950
|
|
CM-25B
|
22+0.75
|
1000-1500
|
680
|
1180*560*950
|
|
CM-30B
|
30+0.75
|
1500-2000
|
710
|
1840*700*1160
|
Wood pellet Machine Use Raw Material:
1.Wood waste,scobs,branch,palm tree,sugarcane residue,sawdust,medical slag,hay,discarded
edible fungus
2.Bean stalk,wheat stalk,corn stalk,cotton stalks,sunflower stalks,mustard stalk,rice stalks,coffee
husk,
cotton shell,peanut shell,rice shell,coconut shell.
3.Livestock and poultry's waste,tea waste,tea waste,forestry wastes,forestry wastes,wood chips
and many other organic waste resources.
Advantages of cat feeding machine:
1. Simple structure, easy to clean and maintain.
2. Spare parts are easy to change, less cost for rollers and dies.
3. Simple operating, just 1 or 2 workers are OK.
4. Be able to change new die and rollers faster to save time to produce pellets.
5. Small and light weight, which can be used in home,small farm and light industrial.
6. Visibility to viewing the material during pelleting is the best way to fix problems.
What about the packing?
After finishing the production, we will clean and packed it before it is qualified by the QC manager.
First we will put drying desiccant inside the machine (protect the machine from wet damage
during the transportation)
Finally we will put wooden case and steel belt. We will upgrade again according to different
machine to protect the damage of the machine before loading the container.
Matters need attention
1. The new machine for the first time must be run or otherwise can't be used normally.
2. When the pellet machine is working, don't reach into the input hopper by hand. If necessary, you can use a stick to help.
3. Before the machine is turned on, you need to add a little mixture before starting. When the machine is shut down, please leave a little mixture in the machine to prevent the roller and the template idling.
4. When the machine is working, and the phenomenon of stuck happens, should immediately stop and make the roller pressed to the bolt loose, and then restart the machine.
5. Each time the work is completed, the bolt of adjusting roller must be released.
6. If the machine is used for a certain period of time or squeeze out a certain amount of pellets and the pellets are made into pieces or the pellets are broken, the template should be turned to the bottom, and 2%-4% water should be added to the mixture.
7. Please often check the belt tightness to prevent the emergence of low yield, belt slippery and so on.
8. Before starting, firstly add gear oil to the gearbox reaching to 2/3 of the horizontal axis. Pellet machine in the first use should work in low load for 40 hours or so, and then replace the gearbox gear oil, 100 hours after the regular replacement. All bearings should be regularly filled with grease.
9. Particle machine works continuously and then the motor fever reaches to 70 degrees Celsius, it is a normal phenomenon.
