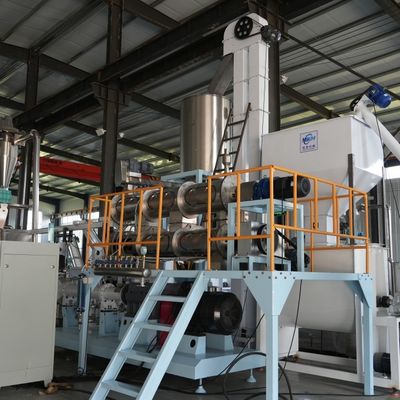

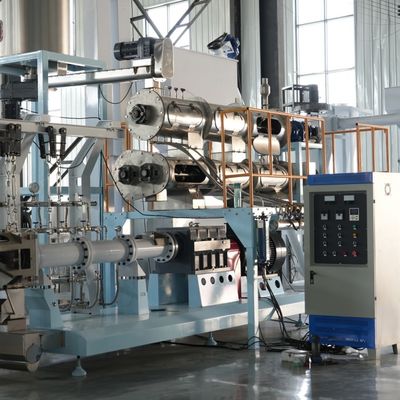

22*2*4m Poultry Floating Fish Feed Production Line 0.5 To 6Ton/ H

I'm Online Chat Now

22*2*4m Poultry Floating Fish Feed Production Line 0.5 To 6Ton/ H

22*2*4m Poultry Floating Fish Feed Production Line 0.5 To 6Ton/ H
22*2*4m Poultry Floating Fish Feed Production Line 0.5 To 6Ton/ H
22*2*4m Poultry Floating Fish Feed Production Line 0.5 To 6Ton/ H 22*2*4m Poultry Floating Fish Feed Production Line 0.5 To 6Ton/ H 22*2*4m Poultry Floating Fish Feed Production Line 0.5 To 6Ton/ H 22*2*4m Poultry Floating Fish Feed Production Line 0.5 To 6Ton/ H 22*2*4m Poultry Floating Fish Feed Production Line 0.5 To 6Ton/ H

Large Image :  22*2*4m Poultry Floating Fish Feed Production Line 0.5 To 6Ton/ H

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: MK65,MK70,MK85,MK95,MK120,MK135
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $9,000.00 - $30,000.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

22*2*4m Poultry Floating Fish Feed Production Line 0.5 To 6Ton/ H

Description
Name: 0.5-6Ton Per Hour Poultry Feed Complete Production Line Floating Fish Feed Machine Voltage: 220-440V 50-60HZ
Weight: 6000 Kg Dimension(l*w*h): 22x2x4m
Type: Feed Pellet Machine Capacity: 150-6000KG/H
Warranty: 1 Year Condition: New
High Light:

6Ton/ h floating fish feed production line

,

fish feed production line 0.5Ton/ h

,

22*2*4m poultry feed production line

0.5-6Ton Per Hour Poultry Feed Complete Production Line Floating Fish Feed Machine



Floating fish feed pellet machine generally consists of meat, meat by products, cereal, grain, vitamins, and minerals. General grains, such as soybean meal, corn meal, cracked wheat, and barely, are often used to improve the consistency of the products. The meat is mixed with the other ingredients. Dry fish feed has a shelf life of about 10 to 12 months. Some manufacturers are adding some kinds of vitamins E and C as natural preservatives.

0.5-6Ton Per Hour Poultry Feed Complete Production Line Floating Fish Feed Machine



SPECIFICATIONS FOR PET FOOD MACHINE



Capacity









140-160kg/h MK 65-III 18m*2m*4m
240-260kg/h MK 70-II 22m*2m*4m
500-600kg/h MK 85-II 28m*2m*5m
800-1000kg/h MK 95-II 35m*2m*5m
4-6Ton/h MK 120-II 80m*4m*5m



Equipment list/Flowout

Mixer screw conveyor Twin screw extruder
  air conveyor multi-layer dryer/oven air conveyor/elevator
  oil spayor double roller cooling conveyor



Extruder system

feeding system extrudering system cutting systerm
  heating system lubricating system controling system



Production Description

  • Materials :wheat/corn flour, fish meal, born powder
  • Final feed: The fish food can be both floating and sinking in different size from 1 to 14mm.
  • Capacity : 150kg/h, 250kg/h, 500-600kg/h, 1Ton/h, 3Ton/h, 6Ton/h.
  • Consumption of fish food machine: Low electricity and labor consumption
  • Design: With flexible design based on the client's demands, we provide turn key project

Equipments List

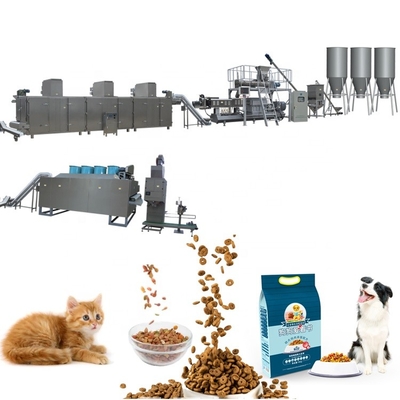

  • Ribbon Blender---Bucket Elevator---Storage Hopper---Conditioner---Twin Screw Extruder---Air Conveyor---Seven layer dryer---Air Conveyor---Oil Sprayer---Flavoring Roller---Cooling Conveyor---Air Conveyor---Sifter

0.5-6Ton Per Hour Poultry Feed Complete Production Line Floating Fish Feed Machine

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .



Production Flow of 0.5-6Ton Per Hour Poultry Feed Complete Production Line Floating Fish Feed Machine



NO. Machine Name Technical Parameters Function
1

Mixer

BFJ-I

Dimension(m): 0.9×0.5×1.1

Power: 3KW



Mixing the raw material and other additives fully.
2

Screw conveyor

LXSL-I

Dimension(m): 3.2×0.6×0.7

Power: 1.1KW



Screw turns to make the raw material convey

in the sealed tube,no leaking and no pollution

3

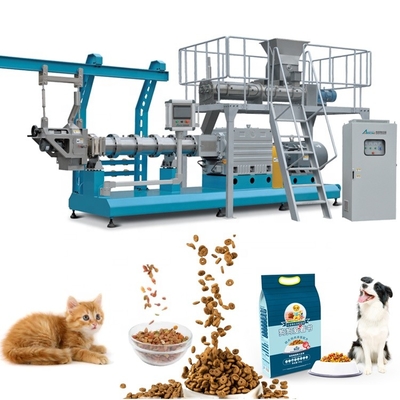

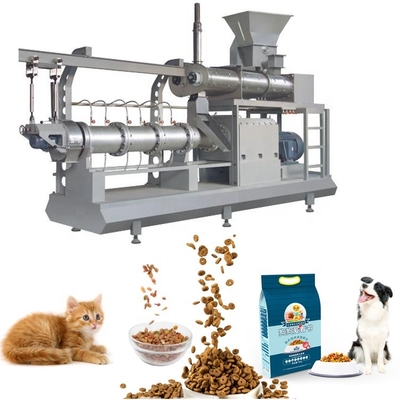

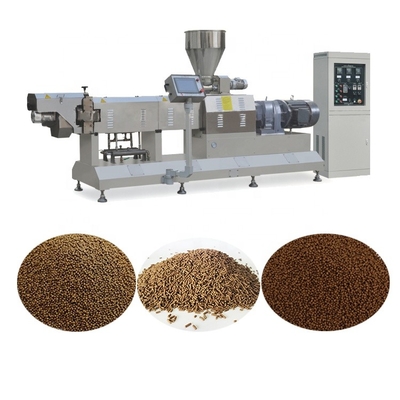

Twin screw Extruder

SLG85- III



Dimension(m): 2.5×0.9×1.2

Power:36KW



Materials are extruded and cut and mixed by screw in the machine barrel. The material is fully matured under high temperature and pressure, through the outlet mold expansion, form foods of various shapes.
4

Air Conveyor

FSJ- 1.1

Dimension(m): 1.1×0.6×0.5

Power: 1.1KW



1.conveys the food relying on the wind-force from the blower
5

Dryer

KX-5-5D

Dimension(m): 5.4×1.3×1.8

Power:37.5KW



1.Used to bake and dry food

2.Net belt running speed can be controlled

and change the food drying time in the dryer.

3.Heating adopts the electric heat tube
