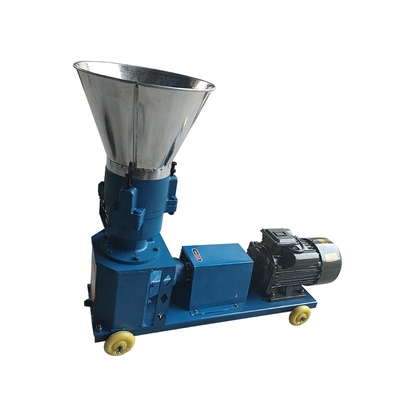

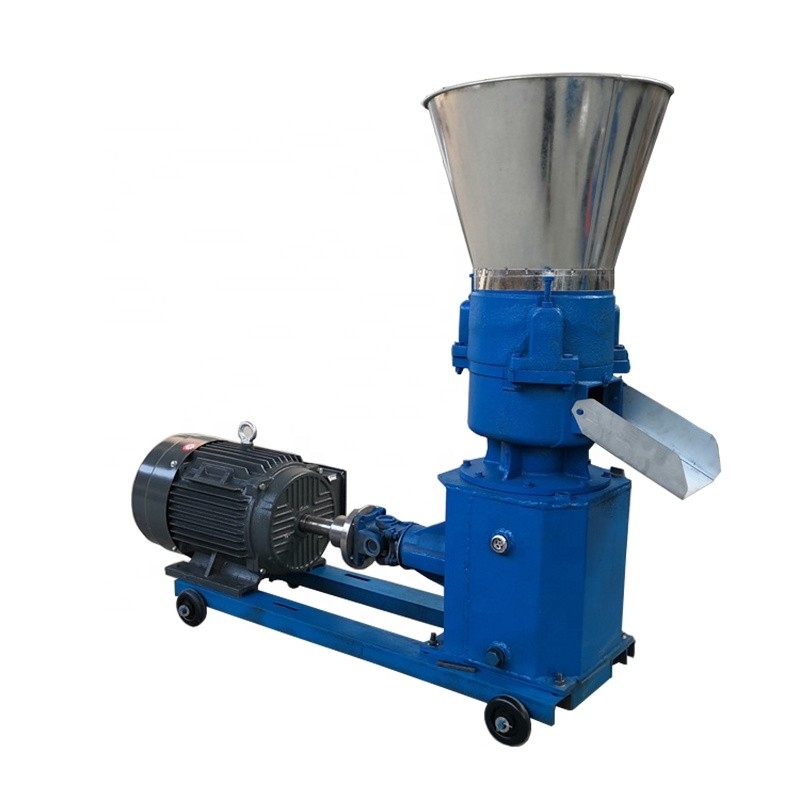

Blue Small Animal Poultry Feed Pellet Machine Granulator 30kw 1200kg/ H

I'm Online Chat Now

Blue Small Animal Poultry Feed Pellet Machine Granulator 30kw 1200kg/ H

Blue Small Animal Poultry Feed Pellet Machine Granulator 30kw 1200kg/ H
Blue Small Animal Poultry Feed Pellet Machine Granulator 30kw 1200kg/ H
Blue Small Animal Poultry Feed Pellet Machine Granulator 30kw 1200kg/ H Blue Small Animal Poultry Feed Pellet Machine Granulator 30kw 1200kg/ H Blue Small Animal Poultry Feed Pellet Machine Granulator 30kw 1200kg/ H Blue Small Animal Poultry Feed Pellet Machine Granulator 30kw 1200kg/ H

Large Image :  Blue Small Animal Poultry Feed Pellet Machine Granulator 30kw 1200kg/ H

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: BH-150 BH-210 BH-260 BH-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $480.00 - 2300.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Blue Small Animal Poultry Feed Pellet Machine Granulator 30kw 1200kg/ H

Description
Name: 1000-1200kg/Hour Shrimp Animal Food Pellet Making Machine Chicken Fish Feed Pellet Machine Application: Poultry Farm
Voltage: 220V/380V/customized Capacity: 120KG/H
Weight: 1000kg Dimension(l*w*h): 160*67*145cm
Advantage: High Efficiency Easy Operation Final Product: Feed Pellet
Function: Pellet Processing Machine Spare Parts: Flat Die+ Rollers
High Light:

Poultry Feed Pellet Machine 30kw

,

animal feed granulator 1200kg/ H

,

small feed granulator machine blue

1000-1200kg/Hour Shrimp Animal Food Pellet Making Machine Chicken Fish Feed Pellet Machine



The Animal Food Pellet Making Machine uses a template, and the pressure roller is made of high-quality alloy steel after special treatment. The main shaft and the flat mold drive the pressure roller to rotate under the action of friction. The pressure roller and the template produce high temperature to mature the starch, and the protein is denatured and solidified. Under the pressure of the pressure roller The pellets are discharged from the die hole, and the pellets are sent out of the machine through the throwing plate. The length of pellets can be controlled by adjusting the angle of the cutting knife. This machine is mainly suitable for processing various livestock, poultry and aquatic pellet feeds by professional households in small and medium-scale breeding. Farming costs. It can be used to raise rabbits, chickens, ducks, geese, fish, pigs, aquatic products, etc.



The flat die pellet mill works on vertical principle. The raw material is put into the hopper from above, and then it drops down into the pelletizing area. The die is stationery while rollers are rotating. When falling into this area, materials will naturally be compressed into pellet between rollers and die through the die holes.

1000-1200kg/Hour Shrimp Animal Food Pellet Making Machine Chicken Fish Feed Pellet Machine

•1) Feeding way: Ring die pellet mill adopts imperative feeder when making wood pellets, while the flat die can send material into pelletizing chamber smoothly just depending on the material's own weight.

•2) Pressure: The flat die itself doesn't occupy much space, which not only gives more space for rollers, but also reduces friction and prolongs service life.

•3) Output pellet: Ring die has a high rotary speed, thus it may cause damage to pellet easily; while the flat die can ensure the pellets integrity.



Technical data of Animal Food Pellet Making Machine

Model Capacity (kg/hr) Power(KW) Weight(kg) Dimension (cm)
BH-125 80-100 3 95 110*35*700
BH-150 110-150 4 98 115*35*80
BH-210 200-300 7.5 280 115*45*95
BH-230 350-450 11 300 138*46*100
BH-260 500-600 15 315 130*53*105
BH-300 700-800 22 600 145*62*120
BH-360 800-900 22 795 160*67*145
BH-400 1000-1200 30 1000 160*67*145



Major characteristics of Animal Food Pellet Making Machine:

1. Simple structure, wide application, small floor space, low noise level

2. Only need to add a little amount of liquid or no need at all to make powdery feed and grass meal into granules.Thus moisture content of granule feed is basically the same moisture content before granulation, so as to be easily stored.

3. Feed of chicken, duck, fish etc guarantees higher economic benefit than mixing powdery feed.

4. Feed granules made from dry materials are with higher hardness level, smooth surface, cooked inside and will make nutrition easily digested.

5. The formation process of granules will make pancreatic enzyme boycott factor in grains and beans denaturized, to reduce bad effects on digestion and kill all kinds of parasite eggs and other pathogenic microorganisms and reduce all kinds of parasitic and digestive system diseases.
