Product Details:
|
| Name: | Mobile Hammer Mill Machine Wood Grinder Crusher Machine For Sawdust Powder | Voltage: | 380V |
|---|---|---|---|
| Type: | Mill Machine | Quantity Of The Hammers: | 56pcs |
| Dimension(L*W*H): | 610*635*780mm | Capacity(t/h): | 650-800kg/h |
| High Light: | Wood Chips Stalks Sawdust Making Machine,Grain Grass Sawdust Making Machine,Grain Grass Hammer Mill Crusher |
||

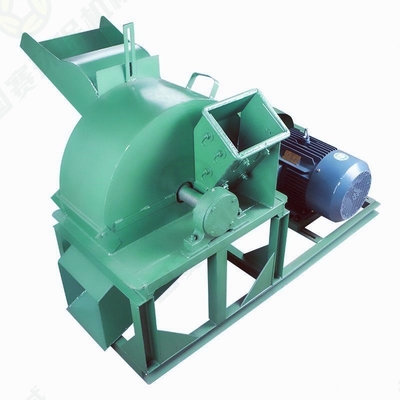

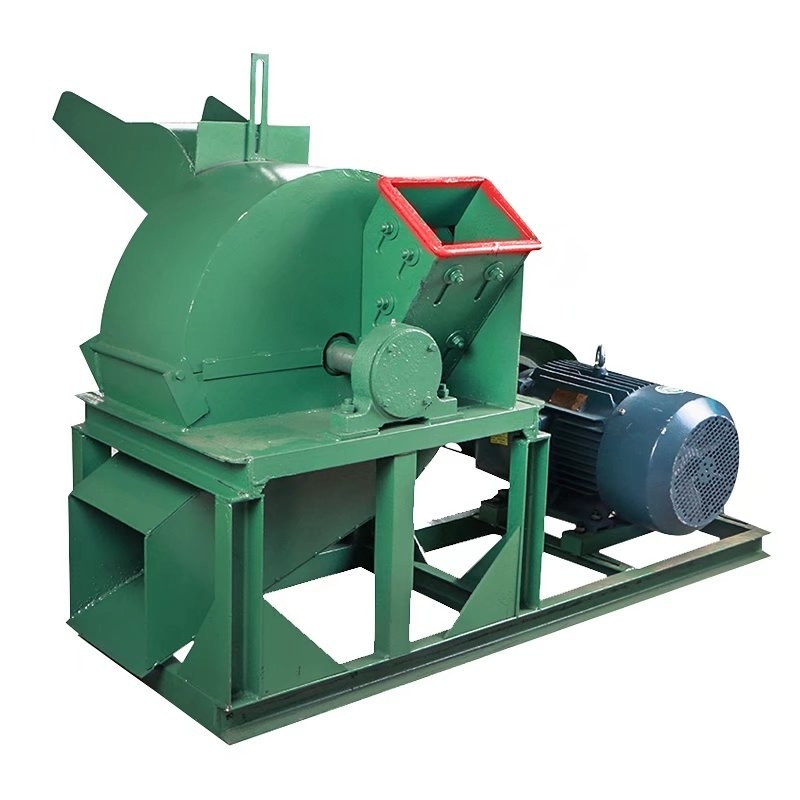

Hammer Mill Wood Chips Stalks Hammer Mill Machine Grain Grass Crusher Hammer Mill
The high efficiency hammer mill is applied for grinding many crude material:
wood chips, rice husk, nut shell, and corn, sorghum, grain, legumes, broken cake pellet and other materials, used in the wood pellet making plant, feed pellet making plant.
1) Hammer mill for making sawdust using double rotor with high speed so hammer mill smash the chips into fine powder efficiently and evenly. The final products size depends on the hole size of the screener inside the hammer mill, it is customized.
2) Hammer mill machine for making sawdust is always matched with fan blower, cyclone which can collect the dust during the production process. Double rotor hammer mill have lots of models with varied capacities. Please see products parameters.
3) The size of the final products from the wood hammer mill is changeable from 2-12mm, through changing the sieve screener of the machine to make different size power material to meet Customers requirement.
| General Characteristics | |
| Model | YSG65*75 |
| Type | Hammer mill |
| Dimension(L*W*H) | 2100*1000*1100 |
| Weight(T) | 1.9 |
| Motor | Siemens |
| Screener | Q235 carbon steel |
| Hammer | Manganese steel |
| Technical Characteristics | |
| Voltage | 380/400/415/440V |
| Power | 55kw |
| Capacity | 2-3 T/h |
| Material moisture | <30% |
| Applications | Wood sawdust, rice husk,wheat straw |
Hot Selling Series:
| Model | Power(kw) | Capacity(T/h) | Hammer pcs | Dimension(mm) | Weight(T) |
| YSG40 | 7.5 | 0.2-0.5 | 12 | 1310*800*1070 | 0.27 |
| YSG50 | 15 | 0.6-0.8 | 16 | 1380*800*1010 | 0.45 |
| YSG65*27 | 22 | 0.8-1.5 | 24 | 1500*1000*1100 | 1.1 |
| YSG65*55 | 37/45 | 1-2 | 48 | 1700*1000*1100 | 1.5 |
| YSG65*75 | 55/75 | 2-3 | 72 | 2100*1000*1100 | 1.9 |
| YSG65*100 | 90/110 | 3-4 | 96 | 2400*1000*1100 | 2.3 |
| YSG130*55 | 110/132 | 5-6 | 80 | 2800*1620*2100 | 5.3 |
| YSG130*110 | 160 | 7-8 | 160 | 3020*1620*2170 | 6.8 |
