Product Details:
|
| Name: | 1-10 T/H Complete Wood Sawdust Pellet Machine Wood Pellet Production Line | Condition: | New |
|---|---|---|---|
| Dimension(l*w*h): | 2700x1100x1800mm | Capacity: | 1-1.5t/H |
| Main Motor Power: | 90kw 8 Pole | Force Feeder Power: | 1.1kw |
| Feeder Power: | 2.2kw | Diameer Of Ring Die: | 420mm |
| High Light: | 1.1kw Wood Pellets Machine,ring die wood pellet mill 1100w,wood pellet production line SKF |
||

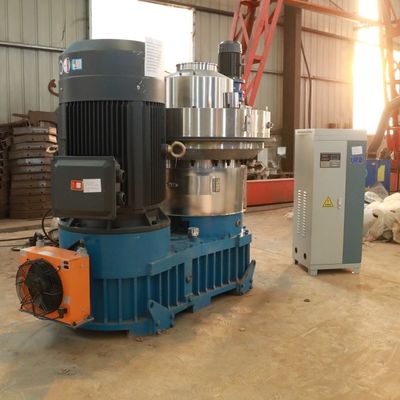

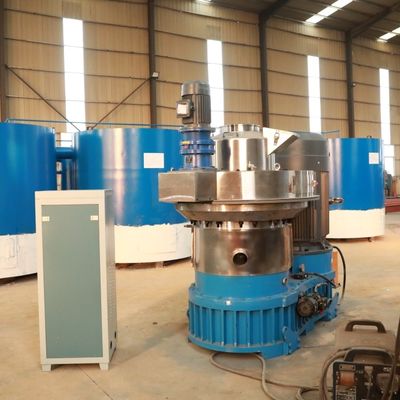

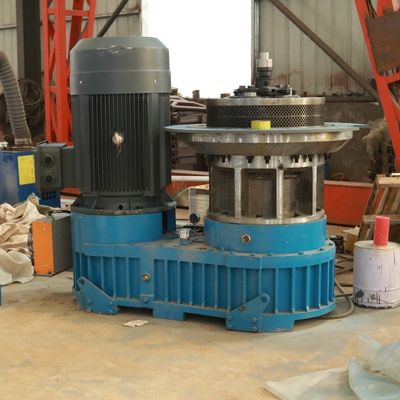

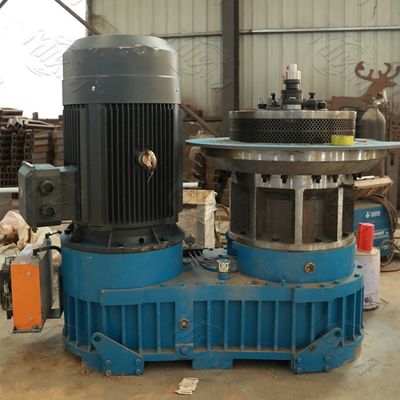

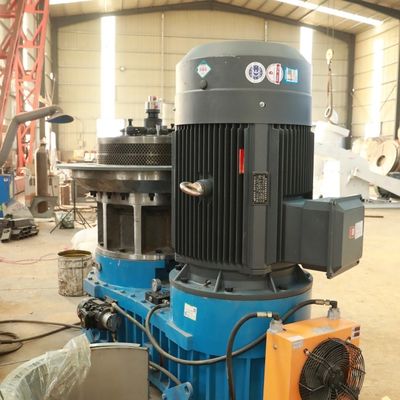

1-10 T/H Complete Wood Sawdust Pellet Making Machine Wood Pellet Production Line
Ring die wood pellet mill is specially designed for biomass industrial production of wood pellets. The raw materials are easy to obtain, like groundnut shell, sawdust, paddy straw, wheat straw, palm husk, rice husks, etc and many other agro and forestry wastes. The final pellets can be used for industrial boilers and large power plants as well as home heating.
(1). This pellet machine mainly used for making wood pellets , the pellets used for industry, boiler factories , the machine can be produce φ6.0,φ8.0,φ10.0,φ12.0 pellets.
(2)The machine adopt imported SKF or NSK bearings, the motor brand is Siemens or china famous Wannan brand
(3)Driven by gear .more strong than by belt, and the capacity 10% higher than by belt .
(4)the machine also matched the safty equipment , once overload , the safty pin will crack, to protecting the machine lifetime .
2. 6-10mm Size Wood Pellet Machine Supplier In China Main Data:
| Model | Main Power(kw) | Capacity(kg/h) | Feeder Power(kw) | Force feeder power(kw) | Die Diameter(mm) |
| MZLH35 | 55 | 400-600 | 1.1 | 1.1 | 350 |
| MZLH420 | 90 | 1000-1200 | 1.5 | 1.5 | 420 |
| MZLH508 | 110 | 1500-2000 | 1.5 | 1.5 | 508 |
| MZLH558 | 132 | 2000-2500 | 3 | 2.2 | 558 |
| MZLH678 | 185 | 3000-3500 | 3 | 2.2 | 678 |
| MZLH768 | 220 | 3500-4000 | 3 | 3 | 768 |
Working Principle of Ring Die Feed Pellet Mill(animal feed pellet mill)
The feed ingredients run through feeder into conditioner and are mixed in the conditioner with hot steam, then they go into the pelletizing chamber through blanking taper slot. By scraper the powder material enters into the pelletizing zone. And then the material will be pressed by ring die and rollers into pellets. The pellets are discharged from the die hole and cut into the requested size by the cutter.
Main Characteristics of Ring Die Wood Pellet Mill
1. Driven by gear, so that the output is improved by about 20% when compared with that of belt drive.
2. Advanced bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation.
3. The feeder adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles.
4. High-quality craft ring dies are adopted, so that the service life is long; the discharged pellets are smooth and the quality is high.
5. Snakelike spring coupling has the properties of novel and compact structure, low noise and low fault rate.
What Materials can be Pelletized by Ring Die Wood Pellet Machine?
Nearly all forestry and agro-waste material can be made into wood pellets by our ring die wood pellet machine, such as: Wood Chips, Shaving, Sawdust, Groundnut-shell, Sugarcane Biogases, Caster Shells/Stalk, Coffee Husk, Paddy Straw, Sunflower Stalk, Cotton Stalks, Tobacco Waste, Mustard Stalk, Jute Waste, Bamboo Dust, Tea Waste, Wheat Straw, Palm husk, Soybeans Husk, Coir Pitch Barks/Straws, Rice Husks etc. The final pellets can be used for industrial boilers and large power plants as well as home heating.
Why Choose Poultry Feed Pelletizer for your CHICKEN?
This poultry feed pelletizer for small poultry farm or home use is different from other feed pellet mills. As for chicken, they are kept for fast and health growth. The feed of chicken should emphasize the nutrition content and ingredients. We developed this homemade chicken feed pelletizer and focused to increase the integrity of nutrition and palatability which can accelerate chicken to have more than usual. What’s more, chicken in different growing stages need different size feed pellets, with this machine, you can make feed pellets from 2-10 mm, meeting different needs.
