Product Details:
|
| Name: | Mobile Hammer Mill Machine Wood Grinder Crusher Machine For Sawdust Powder | Voltage: | 380V |
|---|---|---|---|
| Type: | Mill Machine | Quantity Of The Hammers: | 56pcs |
| Dimension(L*W*H): | 610*635*780mm | Capacity(t/h): | 650-800kg/h |
| High Light: | 3mm Fodder Grinder Machine,Animal Feed Crusher Machine 3mm,Customized Voltage Fodder Grinder Machine |
||

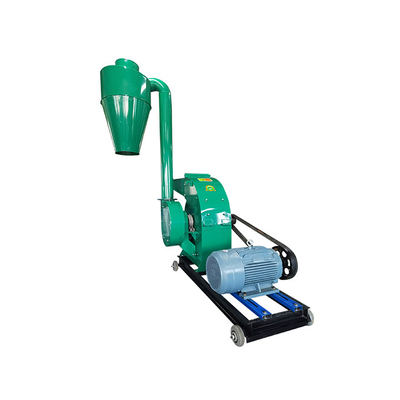

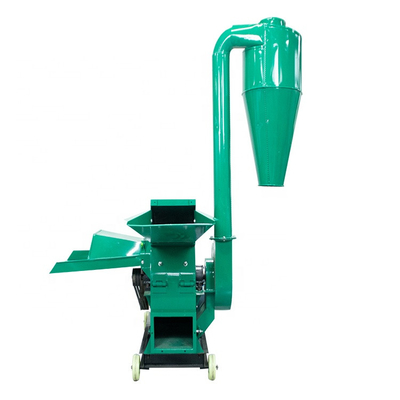

Hammer Mill Also Named Fodder Grinder Pig Feed Crusher Machine For Sale
Hammer Mill is used for crushing small diameter raw materials, which are no more than 100mm such as corn straw,tree branches and so on. after crushing, the diameter of the final products could be 3-5mm.
hammer forage grinder Feature:
1. Maize Hammer Mill can drive by Motor,Diesel,Gasoline Engine.
2. Offering 220V and 380V,Accept Customized Voltage.
3. Simple and Automatic Operation.
4. Easy Maintainance.
5. It can be combined wheels, no limitation on the places.
6. It realizes the perfect combination on the chipping and crushing.
7. Hammer Mill can equipped with airlock, cyclone ,Offering customized design.
Raw Material:
Wood pieces, straw, grass, stalk, tree branches, waste cardboard, bamboo, wood scrap, corn stalk, peanut shell, wheat stalk, wood fuel, cotton stalk, biomass shell and so on, which can crush the raw material into small particles with size 3~5mm.
Main features of small corn hammer mill
1. Grind all kinds of materials of pellet feed, such as corn, sorghum, grain, legumes, broken cake pellet etc.
2. Building in rotor, grind the raw material with no dead angle, finished products would be more even.
3. Operate button can be moved fully, it is easy to be operated.
4. In-built sealed avoid dust spill out, keep the working environment tidy and clean.
5. May carry on the ordinary grinding, also may carry on the thin grinding and the micro grinding. Thus it has been widely used in the raw material grinding of the large and medium scale feed factory, alcohol plant, food products factory and so on.
| Model |
Capacity (Kg/h) |
Power | Hammer blade | Dimension | Weight |
| AKC-360 | 300-400 | 5.5kw | 16 Pcs | 950*650*1010 mm | 180 kg |
| AKC-420 | 500-600 | 7.5kw | 16 Pcs | 1150*800*900mm | 260 kg |
| AKC-420 | 700-800 | 11kw | 24 Pcs | 1300*870*1350mm | 280 kg |
| AKC-480 | 900-1000 | 15kw | 24 Pcs | 1550*920*1100mm | 350 kg |
| AKC-500 | 1200-1500 | 22kw | 32 Pcs | 2460*1410*1550 mm | 650 kg |
| AKC-600 | 2000 | 37+7.5kw | 48 Pcs | 2660*1510*1850mm |
900kg |
