Product Details:
|
| Name: | Poultry Feed Pellet Machine | Application: | Poultry Farm |
|---|---|---|---|
| Voltage: | 220V/380V/customized | Capacity: | 350-450kg/H |
| Weight: | 315kg | Dimension(l*w*h): | 130*53*105CM |
| Advantage: | High Efficiency Easy Operation | Final Product: | Feed Pellet |
| Function: | Pellet Processing Machine | Spare Parts: | Flat Die+ Rollers |
| High Light: | Poultry Feed Pellet Machine High Efficiency,380Volt Poultry Feed Pellet Machine,380Volt Fish Feed Processing Machines |
||

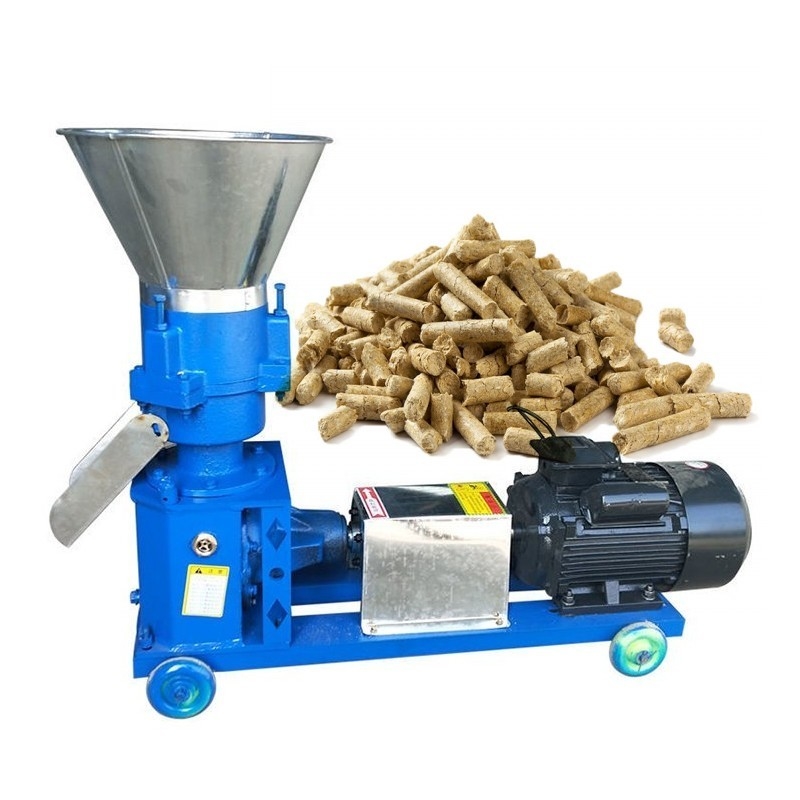

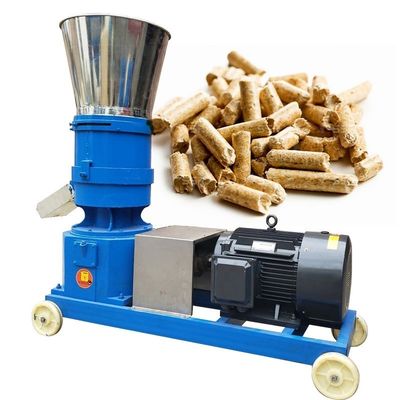

Fish Feed Processing Machines Wood Pellet Mill Making Machine
The press roller and grinding disc are made of chromium manganese steel, which is 10 to 20 times the wear-resisting degree of ordinary steel after high-temperature quenching.
The feed pellet processed by feed pellet machine are smooth, uniform and moderate hardness.Pellet size can be achieved by changing different grinding disc.
125 150 210 Two pressure rollers
260 Three pressure rollers
300 400 Four pressure rollers
| Product type | 125 | 150 | 160 | 180 | 210 | 230 | 260 | 300 | 400 |
| Use of Voltage | 220V | 220V | 220V | 220V | 380V | 380V | 380V | 380V | 380V |
| Power (electric motor) | 3KW | 4KW | 4KW | 4KW | 7.5KW | 7.5KW | 15KW | 22KW | 30KW |
| Power (diesel engine) | 5HP | 8HP | 8HP | 8HP | 15HP | 15HP | 28HP | 35HP | 55HP |
| Productivity | 50KG/h | 100KG/h | 150KG/h | 200KG/h | 300KG/h | 400-500KG/h | 600-700KG/h | 1000-1200KG/h | 1800-2000KG/h |
| Applicable types | Poultry, livestock, pets | ||||||||
| Processable feed type | Cardamom, grain, straw, green feeding, meat and bone meal, corn, whey powder, etc. | ||||||||
| model type | 2.5mm/3mm/4mm/5mm/6mm/8mm | ||||||||
1.The press roller and grinding disc are made of selected chromium-vanadium steel, which is quenched at high temperature
2.Motor ,Double universal joint,easy installation
3.Adjust the distance between the press roller and the grinding disc. When making particles, be sure to keep the nuts on both sides balanced and adjusted to avoid damage to the press roller and the grinding disc.
4.We recommend high quality machine oil or hyperbolic heavy load gear oil

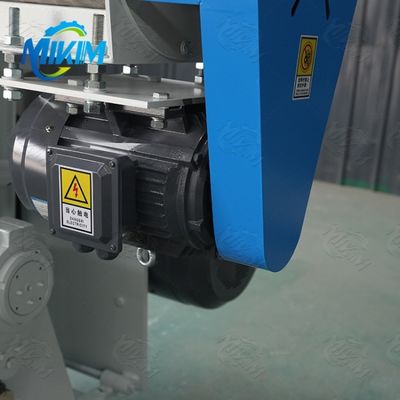

5.The coil is made of new copper wire to ensure the efficient, stable and safe operation of the motor
