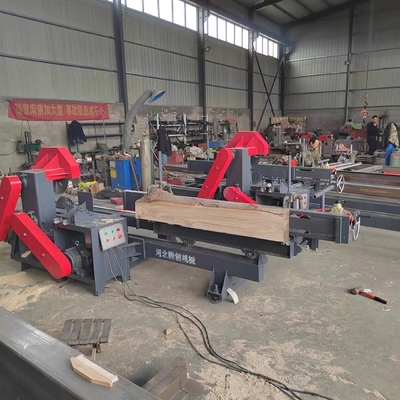

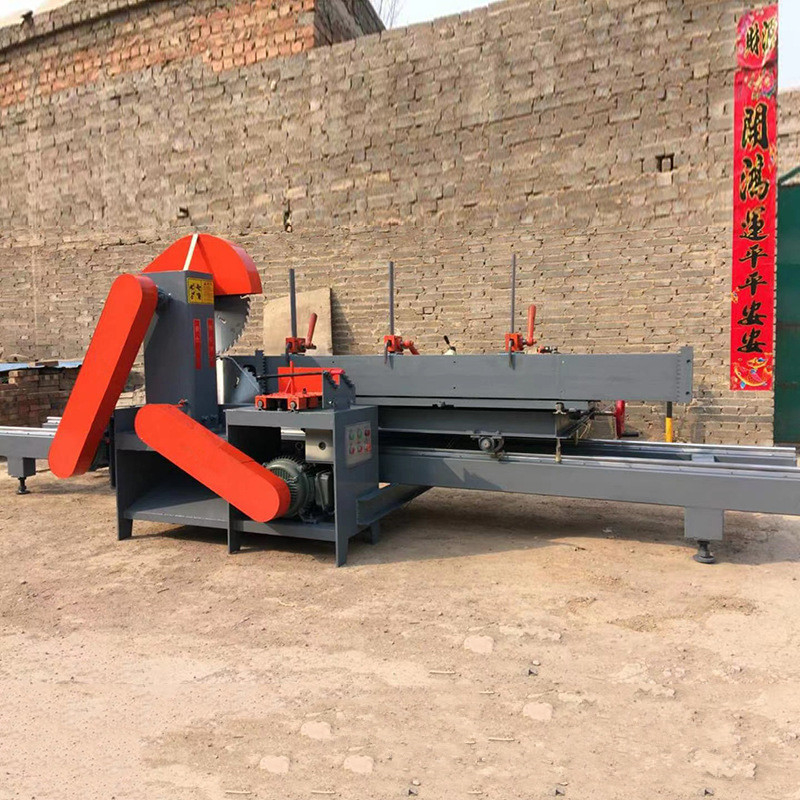

Round Log Wood Band Saw Cutting Circular Sawmill Sliding Table Saw Machine

Saw blade layout for up and down single saw, the use of large size saw blade, and with a scraper, up and down saw blade saw road smaller, saw cutting accuracy, reduce wood waste. The saw surface is smooth and smooth, avoiding the phenomenon of saw bending and digging, and the products are smooth and standard without going through the planer, which can replace the band saw machine.It has the advantages of reasonable structure, beautiful shape, high efficiency and energy saving, environmental protection,safety and reliability, and is very suitable for jointing board, finger board, wood line, plate and square material processing. It is the equipment of construction, furniture, wood, processing and other industries.High precision sawing, according to the need to adjust the sawing size, and can be adjusted according to the size of the sawing into specification wood or wood, wood or plate finished surface smooth, no need to plane.

Model BD-YC300 BD-YC400 BD-YC500 Feeding Length 10cm-400cm 10cm-400cm 10cm-400cm Feeding Diameter 10cm-300cm 10cm-400cm 10cm-500cm Power 2*7.5kw 7.5*11kw 11*11kw Saw blade Specifications 405*36T*6T*3.6mm 500*44T*6T*3.8mm 600*48T*5mm Size 200-800*160*160cm 200-800*160*160cm 200-800*160*160cm Feeding Rate Manual push feed Manual push feed Manual push feed Weight 500-750kg 500-750kg 500-750kg



Daily maintenance:
1.Regularly adjust and check the feed chain, feed motor chain and navigation motor inside the log multi-blade saw.
2.Check regularly whether the length and tightness of the main motor belt is moderate, add oil regularly to the oil cup of the box, and check whether the oil pipe has been properly connected to the port.
3.The cushion cover, saw blade, navigation blade should be cleaned regularly (3~5 days) with diesel oil, wipe clean with a clean cloth, installation can not have debris, to clean, and then wipe clean with a cloth.
4.The spindle core should be used every day to flush the hole with water when replacing the log blade saw, or to blow the air with the air gun at the most inner outlet to blow the dirt out and ensure that the outlet is smooth.
