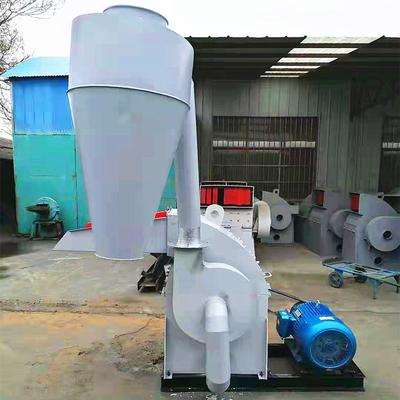

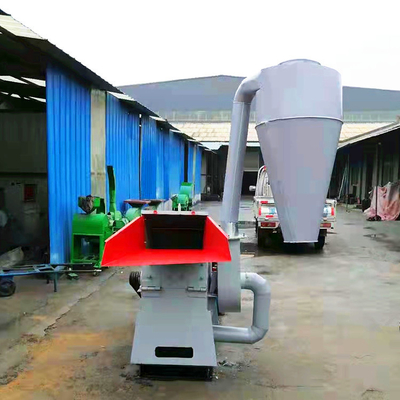

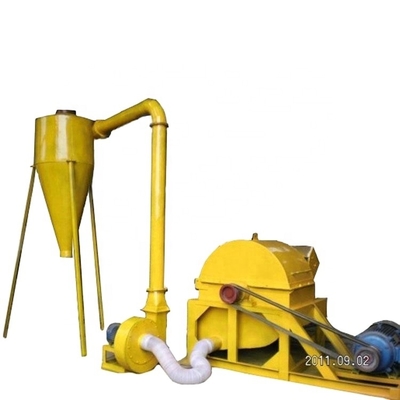

7.5kw Horizontal Hammer Mill Machine 1000kg/ H AC380V For Animal Feed

Small Horizontal Animal Feeds Mixer Grinder Feeds Processing Machinery Hammer Mill Machine

This hammer mill machine is mainly used for crushing and mixing all kinds of dry animal feed. Screw conveyor, crusher and mixer are concentrated in one, so it occupy a small place and easy to install and carry. And the crusher can absorb the raw material by itself.

how to use hammer mill feed mixer grinder machine?

First 1. After the mixer and grinder are installed, check the fastening of each fastener, and tighten them if they are loose. To check if the belt tightness is proper, the factory equipment will have air vents. Put them all in cloth bags. The cloth bags are thinner, which can spread the wind and filter the flour. The longer the bag is, the better (80 cm to 2 meters). Poor wind will affect the working efficiency of the equipment.

2. Before starting the crusher (note that there is no power), first turn the rotor by hand to check whether the hammer blade and rotor are running flexibly and reliably, whether there is any collision in the shell, and whether the rotation direction of the rotor is in line with the arrow on the machine. The directions are the same, whether the motor and the fan machine are well lubricated. Then power on and idle for two or three minutes. Put it back to use if there is no abnormality.

3. Put on a white leather tube! Put on a white leather tube! Put on a white leather tube! The white leather tube is 3-5cm from the bottom of the pit (the ideal height to help the raw material suck)

Second, start the mixing motor first, and then start the crushing motor. Add auxiliary additives from the feeding hopper, and crush the main materials and auxiliary materials simultaneously. After the main materials and auxiliary materials are processed and input into the machine room, continue to stir for 3 to 5 minutes. After the finished products are bagged, the next batch of production is continued.

Third, remove debris, metal, sand and stones from the material in time to avoid damage to the parts.

4. If the equipment is used continuously for 50 hours, please add butter to the refueling site and check it in time.

hammer mill feed mixer grinder machine working principle

This 500kg/h corn hammer mill feed mixer grinder machine can be divided into two parts: crushing structure and material structure;

The crushing structure: there are two ways to feed the materials: Automatically or Manually. when the raw materials were put into the crushing room, with the beating of hammer leaf and the scrubbing of the air, the raw materials will be crushed into mealiness or graininess. The under the effect o the centrifugal air, the meanliness or the graininess will get into the impeller casing through the sieve pore.

The materials mixing structure: with the whirling of the thruster, the materials will be transferred into the material pipeline by the hammer room by force, then the materials will be lifted to the top of the room and be totally mixed up and down and spinned from left to right via the air. Therefore, the materials can be evenly mixed which is quite ideal.

Packaging & Shipping

All the goods exported are packed in wooden case or carton with export standard except naked package when necessary.We have our own professional shipping company which could deliver the goods to every corners in the world with safety and speed, and also can supply the services of solving the problems occurred during the transaction, such as customs cleaning.
