Product Details:
|
| Name: | Hot Sale Feedstuff Pellet Making Machine For Animal Food Pellets Production | Application: | Poultry Farm |
|---|---|---|---|
| Voltage: | 220V/380V/customized | Model: | 550 |
| Weight: | 1500kg | Dimension(l*w*h): | 1620*690*1600 |
| Advantage: | High Efficiency Easy Operation | Final Product: | Feed Pellet |
| Function: | Pellet Processing Machine | Spare Parts: | Flat Die+ Rollers |
| High Light: | feedstuff Poultry Feed Pellet Machine,chicken feed making machine 45kw,hen feed making machine 1.62*0.7*1.6m |
||
| Model | Capacity(KG/H) | Power(KW) | Size(MM) | Weight(KG) |
| 200 | 100-120 | 7.5 | 1000*450*850 | 350 |
| 250 | 150 | 15 | 1120*440*1060 | 600 |
| 300 | 200 | 22 | 1280*550*1200 | 800 |
| 350 | 300 | 30 | 1300*530*1200 | 900 |
| 450 | 600-800 | 45 | 1620*690*1600 | 1500 |
| 550 | 800-1000 | 55 | 1700*690*1600 | 1600 |
Professional Real Manufacturer of feedstuff pellet making machine!

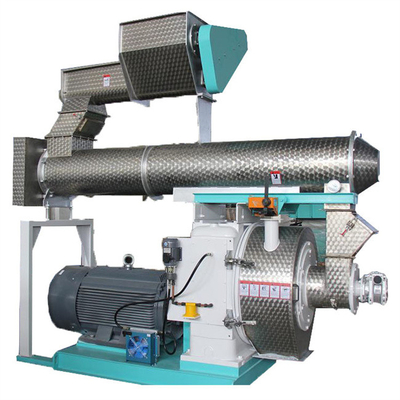

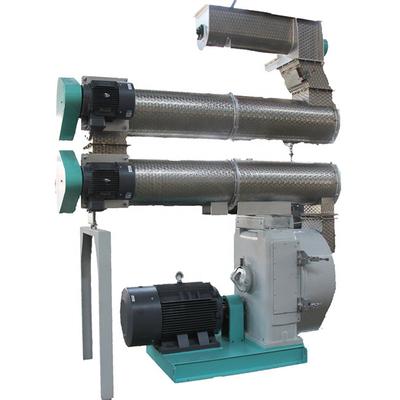

Hot sale feedstuff pellet making machine for animal food pellets production
Details of pellet making machine:
Ring die pelleting machine with better quality pellets and higher capacity
Gear drive with stronger power
Stainless steel ring die or alloy steel ring die
CE & Gost certificate for European countries and Russia.
NSK Bearing or SKF Bearing according to customer need.
A) Gearbox Assembly:
Stainless Steel Pellet Die Chamber and Backing Plate with Metal-to-Meal Seal.
One Piece Alloy Steel Quill Shaft.
One Piece Alloy Steel Main shaft.
Top&Bottom Knife Assembly.
Two Complete Roller Assemblies.
Stainless Steel Quick Dump Feed chute.
Dual Shear Pins for Die and Drive Train Overload Protection.
B)Conditioner:
Stainless Steel Mixer
One Drive Motor
C)Magnetic spout:
Permanent Magnet in Stainless Spout between Feeder and Conditioner.
D)Feeder:
Stainless Steel Feeder Housing.
With variable frequency Motor
We are specialized in designing and manufacturing poultry feed,aquatic feed pellet machinery,biomass pellet machinery and the complete production line(all auxiliary equipment) with CPM advanced technology.
The current products include: hammer mill, ingredient weighing system, mixer, pellet mill, counter-flow cooler, dryer, crumbler, rotary screener, liquid adding equipment, pulse filter equipment, horizontal and vertical conveying equipment, links and gates, permanent magnet cylinder, and de-iron equipment etc.
Features:
Main drive adopts high accurate gear drive,with an output of about 20% higher than belt drive,and the die adopts the quick removing clamps.
The drive part of the machineincluding motoroptimize the high quality bearings made in Switzerland and Japan,which ensure high efficient and steady driving with low noice.
Full stainless steel strengthening feed conditioner,adopts the frequency-conversion speed regulating control to guarantee quality pellet feed.
The alloy steel die is made by international advanced German gun drill and American vacuum furnace,has long service life and ensure smopthly pelleting and high quality.
The international advanced compensation type flexible coupling is of novel and compact structure,safety,low noise and less trouble.
Permanent magnet device of high performance.
Adopt international advaned pipeline system and inlet pressure regulator.
If it is used together witk N8 counter flow cooler, 150×2d rotary sifter and advanced fineteeth crumbler,the pellet feed can reach the highest quality.
Pellet mill with two or three conditioners can be custom-made to produce high quality poultry,livestock and aquatic feed.
1. Q:How about the installation?
A:Engineers available to service machinery overseas,including installation,com-
mission and training,etc.
2. Q:Can you ship to my country?
A:Yes, no problem. We can ship your cargo to worldwide.
3. Q: Do you provide after-sale service?
A: Yes. We provide one-year warranty to make sure your machine runs consis-
tently. Besides, we always offer lifelong services and provide spare parts for a
long term. And we repair main parts under correct using for free in two years.
Contact Person: Fiona
Tel: 86 19913726068
