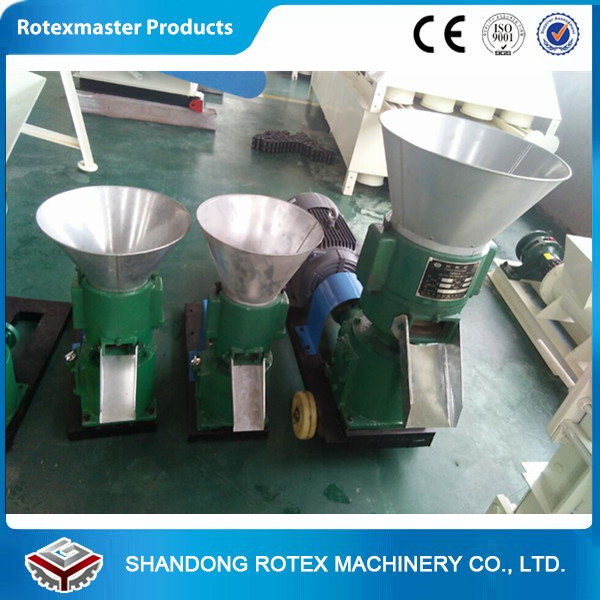

China factory low price high quality small animal feed pellet machine
>>>>Brief Introduce of Feed Pellet mill
YSKJ series is on the basis of absorbing advanced technologies domestically and abroad.It
adopts mosaic rotating roller,during working process,the roller can adjusted as clients requirements.It is specially used for making poultry feed pellet for chicken,pig,duck,goose etc.Less investment,easy opration,fast return back.
Animal feed pellet machine Application:
The feed pellet machine for Animal adopts the most advanced transmission and lubrication device. It is used
for producing biomass fuel pellets, feed pellets and organic fertilizer pellets.
The pellet size can be adjustable through changing die dia.
Characteristics of Small Pigeon Feed Pellet Making Machine:
1. Simple structure, flexible usage, small floor area and low noise.
2. The pellets adopt dry materials processing, so the pellets have features of high hardness, smooth surface, internal maturation which can improve the digest and absorption of nutrient.
3. In the forming process of pellets, the grain and beans will take the denaturation effect. This can reduces the bad influence to digest. And also can kill all kinds of parasitic ovum and other pathogenic microorganism to reduce digestive system disease.
4. Powdery feed and grass can be made into pellets without or only a little fluid. So the moisture content of the pellet feed is almost same with the materials before pelletizing. Then the pellets can store for a long time.
5. The pellets are suitable for chicken duck, fish, cattle and so on, compared with mixing powdery feed, the feed can get higher economic benefits.
7. Driven with heavy duty gearbox construction can produce continuously in most adverse condition.
8. The key parts are made of alloy steel to be very strong and malleable. Die is made of stainless steel.
>>>>Technical Parameter of Feed Pellet Machine
|Model||Power(kw)||Pellet Diameter(mm)||Output(kg/h)||Overall Dimensions(mm)||Weight(kg)|
|YSKJ120||2.2/3||φ 2-φ 6||80-100||600x450x900||50|
|YSKJ150||4||φ 2-φ 6||100-300||750x450x870||100|
|YSKJ120||5.5/7.5||φ 2.5-φ 8||300-500||1150x530x750||150|
|YSKJ120||11/15||φ 2.5-φ 8||400-700||1250x600x850||200|
By using corn, bean, pulp, straw, grass, rice husk and so on waste material can make feeds for animals, this product applied
to aquiculture, feed processing plant, Poultry farming etc.
Competitive Advantage of Mini feed pellet mill
It can change waste raw material, such as sawdust, rice husk and such material into animal feeds ,and improve their uses, energy saving and protect the environment.
Specification of Mini feed pellet mill
1.Pelletizing is the process of making waste materials into solid fuel. The pellets are then used for thermal combustion. Wood pellets are one of the most common products of pelletization.
2.Wood pellets can be made from any type of agro-forestry waste: peanut shells, sugarcane bagasse, caster shells/stalks, sawdust, coffee husks, paddy straw, sunflower stalks, cotton stalks, tobacco waste, mustard stalks, jute waste, bamboo dust, tea waste, wheat straw, palm husks, soybean husks, coconut residues, rice husks, forestry waste, woodchips and other agro-wastes.
3.The moisture content should be less than 15%, and grain size below 5*5 mm.
4.With high-precision gears can make the working stability and long time.
1. Simple to operate and clean, only 1 or 2 workers are OK.
2. Spare parts are easy to change, less cost for roller and dies.
3. The pelleting process is visible, so it is convenient to solve problems in time.
4.Driven by diesel engine, this diesel flat die pellet mill can be used in nearly everywhere in the world, especially popular for areas with shortage supply of electricity.
5.Diesel flat die pellet mill has compact structure and light weight which enable it to be moved freely and more adjustable to small pellet production.
6.Equipped with high quality alloy steel roller and die by advanced craft.The visibility design of the pelletizing chamber ensures a smooth pelletizing process and timely repairing.
7.Feed and grass meal can be directly made into pellet without adding any liquid materials.The pellets size various from dia2.5mm, 3mm, 4mm, 6mm to 8mm for different kinds of animals.
Mini Feed Pellet Mill Process
Firstly, put materials into the feeder and let them fall down onto a set of rotating rollers over the die; then, the materials will be compressed between the surface of die and the rotating rollers, while pellets coming out of the die they will be cut into set length by a sharp knife. The temperature is about 70°C in process, so the protein freezes, the nutritional value increases and is easy to absorbed for animals, pellets inside is ripening and outside slippy, rigid enough, suitable for long-term storage.
