Product Details:
|
| Name: | Animal Feed Pellet Packing Machine Semi Automatic Bag Weighing Scale 10-50kg/Rice Packing Machine | Type: | Animal Feed Pellet Packing Machine |
|---|---|---|---|
| Weight (KG): | 2000 | Function: | Filling, Sealing, Counting |
| Driven Type: | Pneumatic | Voltage: | 220V 50hz/60hz |
| Dimension(L*W*H): | 1900×1500×2800mm | Warranty: | 1 Year |
| High Light: | 2.8m Pellet Packing Machine,3p 25 kg bag packing machine,0.5Nm3 packing and weighing machine |
||
Animal Feed Pellet Packing Machine Semi Automatic Bag Weighing Scale 10-50kg/Rice Packing Machine

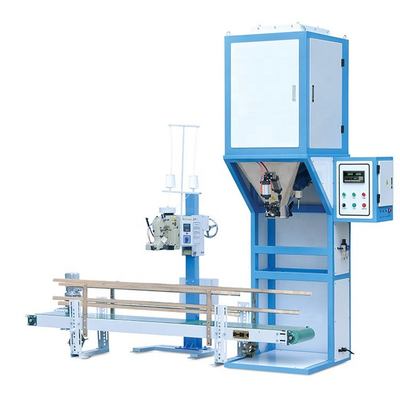

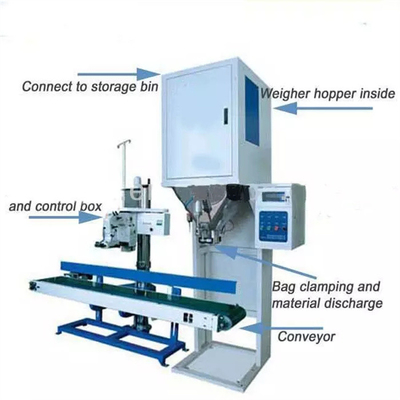

The powder and pellet packaging machine consists of a material box, a packing scale, a sewing machine and a conveyor belt. The machine is used to weigh packaged feed, grain, fertilizer, powder, and various granules.
Machine Included
5 - 50Kgs Bag Weighing Packing Machine * 1 (ONE) Set
Buckets Conveyor Feeder * 1 (ONE) Set
Bags Conveyor Belt * 1 (ONE) Set
Bags Sewing Machine * 1 (ONE) Set
Air Compressor * 1 (ONE) Set [Optional]
Technical Parameters
| Model: | PW-50 |
| Packing Weight: | 5-50Kg |
| Maximum Weighing Weight: | 100Kg |
| Packing Speed: | 4-6 bags/min |
| Packed Error: | ≤ 0.3% |
| Air Pressure: | 0.4-0.6Mpa |
| Air Consumption: | 0.5Nm3 |
| Weighing Mode: | Weighing by Clamp-Hold Bag |
| Frequency/Voltage: | AC Three-Phase 50Hz/60Hz; 220V/380V |
| Power: | 2.2kw |
| Dimensions: | 1900×1500×2800mm |

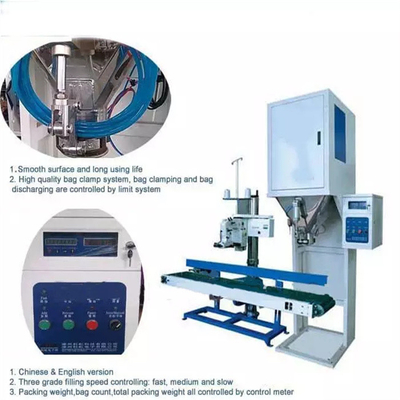

Characteristics of pellet packing machine
The error of automatic correction, out-of-tolerance alarm, fault source automatic diagnosis, and other functions
Contact with the material parts adopt stainless steel material, long service life
Delivery infinitely adjustable-speed motor adopts aluminum alloy type
Reserve a printer interface, can print packing number, total weight of production data
The reserved RS232 serial port, and peripheral management system for data communication
Serial port, and peripheral management system for data communication
Through the instrument automatic control, the realization of a two-speed feeding, feed speed and precision guarantee.
Artificial bag, double cylinder holding, a high degree of automation, reliable operation, easy to operate
The meter high sensitivity, sampling speed, software function is strong, has a standard interface, can communication with the computer
Weighing speed, accurate measurement, digital display, intuitive easy to read, stable and reliable, and convenient maintenance
Control cabinet USES the seal form, the dust is suitable for bad environment
We can supply complete pellet machine production line for biomass material, include chipping, milling, drying, pelletizing, cooling and packing, according to different requirements of our customers. We also offer industry risk evaluation and supply suitable solution according to different workshop.
