Durable Multifunctional Hammer Mill Machine Rice Husk 1.5kw 60kg/ H

I'm Online Chat Now

Durable Multifunctional Hammer Mill Machine Rice Husk 1.5kw 60kg/ H

Durable Multifunctional Hammer Mill Machine Rice Husk 1.5kw 60kg/ H
Durable Multifunctional Hammer Mill Machine Rice Husk 1.5kw 60kg/ H
Durable Multifunctional Hammer Mill Machine Rice Husk 1.5kw 60kg/ H Durable Multifunctional Hammer Mill Machine Rice Husk 1.5kw 60kg/ H Durable Multifunctional Hammer Mill Machine Rice Husk 1.5kw 60kg/ H Durable Multifunctional Hammer Mill Machine Rice Husk 1.5kw 60kg/ H Durable Multifunctional Hammer Mill Machine Rice Husk 1.5kw 60kg/ H

Large Image :  Durable Multifunctional Hammer Mill Machine Rice Husk 1.5kw 60kg/ H

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: 158,198
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $500.00 - 910.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Durable Multifunctional Hammer Mill Machine Rice Husk 1.5kw 60kg/ H

Description
Name: Multifunctional Small Wood Pellet Sawdust Feed Rice Husk Wood Hammer Mill Machine Voltage: 380V
Warranty: 1 Year Condition: New
Type: Hammer Mill Capacity(t/h): 60-2000kg/h
Dimension(L*W*H): 750*450*730mm Weight: 2900 Kg
High Light:

rice husk hammer mill 1.5kw

,

Hammer Mill Machine 60kg/ h

,

durable Multifunctional hammer mill

Multifunctional Small Wood Pellet Sawdust Feed Rice Husk Wood Hammer Mill Machine



Hammer mill is developed according to the need of the industry production on the basis of year’s study and design. Because of the rational design, compact structures, safe, durable, high production efficiency, it receives a good effect after the promotion. The whole set equipment is driven by a motor.

Multifunctional Small Wood Pellet Sawdust Feed Rice Husk Wood Hammer Mill Machine

Model Motor power capacity (kg/h) Weight (kg) Packing size(mm)
EWP158B 1.5kw 60-120kg/h 75/85kg 750*450*730mm
EWP198B 3kw 120-250kg/h 120/135kg 1000*750*1120mm
EWP420B-7.5 7.5kw 250-500kg/h 250/270kg 1200*1000*1220mm
EWP420B-11 11kw 250-700kg/h 300/320kg 1200*1000*1220mm
EWP500B-28B 11kw 400-800kg/h 470/500kg 1500*650*560mm
EWP500B-28B 15kw 400-1000kg/h 500/530kg 1100*930*980mm
EWP500B-40B 22kw 800-1000kg/h 710/755kg 1900*1100*1270mm
EWP500B-40B 30kw 800-1300kg/h 805/850kg 1900*1100*1270mm
EWP500B-60B 37kw 1000-1600kg/h 906/960kg 1900*1240*1270mm
EWP500B-60B 45kw 1000-2000kg/h 940/995kg 1900*1240*1270mm



Model Matched Power Capacity Weight Package size
EWF420-280A 15HP 250-500kg/h 370/390kg 1650*800*1120mm
EWF420-280A 22HP 250-700kg/h 390/410kg 1650*800*1120mm
EWF500-280A 22HP 400-1000kg/h 480/510kg 1700*800*980mm
EWF500-400A 55HP 800-1100kg/h

cyclone dust collector 125/145kg

Main machine310/330kg

Diesel engine560/590kg

2700*750*920mm

1150*800*1270mm

1500*1050*1320mm



Working Principle of Multifunctional small wood pellet sawdust feed rice husk Wood Hammer Mill Grinder Machine

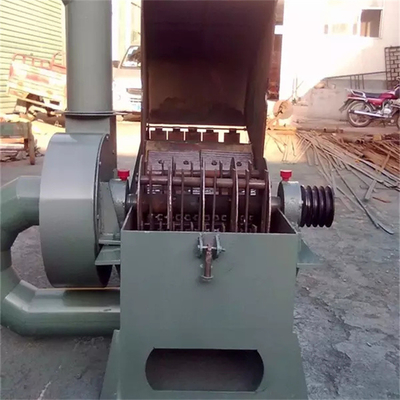

The main working part of Hammer mill is the rotor with hammers. The rotor consists of main shaft, disk, hinge pin and hammers. A sieve plate is below the rotor. The motor drives the rotor to rotate at a high speed. When the materials get into the crushing cavity, they are crushed by the rotating hammers, the crushed products which meet the required size can be discharged from the sieve plate and become the final products, the products with larger size are brought back to the crushed area for being re-crushed until they reach the required size.



Product Application

1. corn, beans,grain,maize,spice,chili,herb,wood,tree branch etc.
2. grain straw,rice wheat bean straw ,corn forage crops stalk, potato stem, various biomass.



MIKIM is a company specializing in the production of agricultural machinery, the main products include straw cutting machine, grinder, mixer, pellet machine and cooling machine and other related parts. Since the establishment of the company, and gradually improve the management of the foundation, we are "quality first, time fast, courteous service, reasonable price" as the principle, relying on the market, and constantly grow and develop. In the production process, established a good market reputation. we plant at low prices,professional mechanical processing to provide you with satisfactory service.
