Product Details:
|
| Name: | Full Automatic Cat Food Manufacturing Machine Pet Feed Production Line | Condition: | New |
|---|---|---|---|
| Dimension(l*w*h): | 25*2.5*3.5m | Heating Source: | Electricity, Gas, Diesel, Steam |
| Power(w): | 150KW | Warranty: | 1 Year |
| Capacity: | 100-1200kg/h | Weight: | 380 Kg |
| High Light: | 150KW Pet Feed Production Line,pet food production line 25*2.5*3.5m,cat food making machine L25M |
||

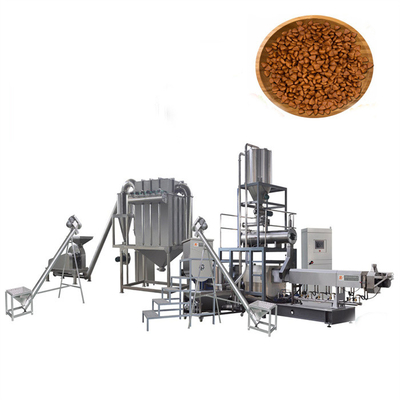

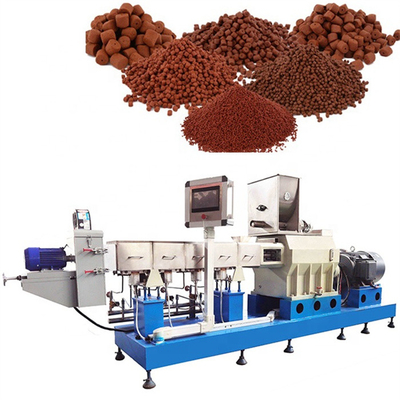

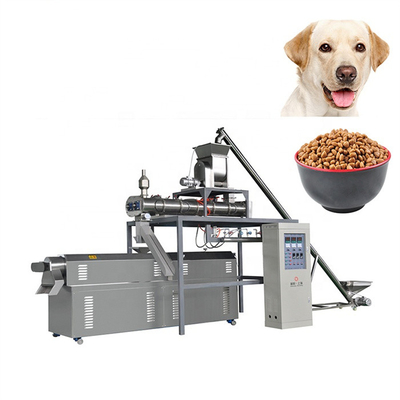

Full Automatic Cat Food Manufacturing Machine Pet Feed Production Line
The pet dog cat food machine can manufacturer the food with novel various shape, particular tastes and scientific nutrition for lovely pets. Our machines enjoy excellent sales by its high outputs and simple and easily be operated which can help you save manufacture space and manufacture cast.
1. Pet food is plant or animal material intended for consumption by dogs, cat or other canines. In extruder, the ingredients are cooked under intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife.
2. Pet Food Processing Line adopts corn flour, bone meal, fish meal as raw materials.
3. Different shapes can be made by adjusting the dies from extruder.
Voltage of pet food processing machine
Three phases of pet food processing machine: 380V/50Hz, Single phase: 220V/50Hz in china, we can make it according to customers' local voltage in different countries.
Technical Parameter of pet food processing machine
| Model | Installed capacity | Power consumption | Output | Length |
| CW65-I | 58KW | 38KW | 100~120KG/H | 16*1.2*2.2m |
| CW70-II | 70KW | 45KW | 150~200KG/H | 18*1.2*2.2m |
| CW85-II | 90KW | 60KW | 450~500KG/H | 20*1.5*3.2m |
| CW90-II | 180KW | 150KW | 800~1200KG/H | 25*2.5*3.5m |

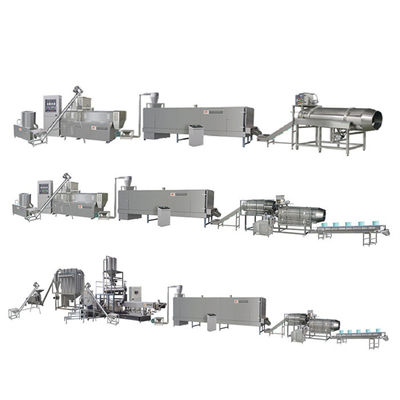

Flow chart diagram:
Grinding→mixing→extruding→drying→flavoring→cooling→packaging
Our engineer could design the layout drawing according to your dimension of the factory for the fish feed machines.
Raw material:
Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.
Final product:
fish feed pellet /color customized/floating and sinking type/length customized
diameter from 0.2mm to 20mm
Our Service
1) Provide factory layout according to your factory size in advance;
2) Provide the basic formula;
3) Inspect the machine before leaving the factory;Oversea installation and commissioning equipment;
4) Technician will work with your workers together and teach your workers how to install machines,
how to operate machines, how to maintain machines during daily working;
5) Our engineers will teach your workers how to clean the extruder, how to change the screw,
how to change barrel etc, and provide technology support with you forever;
6) Provide English Version of Installation / Operation / Service / Maintenance Manual.
