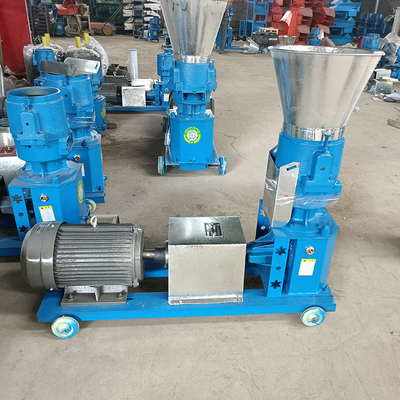

Small Animal Feed Extruder 50in Pellet Making Machine 20mm Dia

Homemade Small Animal Feed Extruder Livestock Poultry Feed Pellet Machine

This animal feed/food pellet making machine can be used for processing livestock, poultry and aquatic feed pellets,such as dog pellets and chicken pellets, which is specially suitable for medium feed factory, breed farm or aquatic base. It has the better raw material versatility, which can be suitable for pelletizing many kinds of raw material. And also, this manufacturing plant for animal feed has the features of low energy consumption and high production efficiency for larger profits. We provide free charge of installation, and training, factory designing, and timely after-sale service.

Features of Animal feed pellet machine:

This flat die animal feed pellet machine belongs to small food pellet machine for poultry feed because of its capacity (under 800kg/h), it is applicable for making chicken feed pellets, goat feed pellets, cattle feed pellets, rabbit feed pellets, fish feed pellets, dog feed pellets, etc.

The small feed pellet machine is formed by squeezing the mixed powdered feed once. It does not need to add water during the granulation process, and does not need to be dried.

After natural heating up to 70 degrees, the starch can be gelatinized and the granules are matured deep. The surface of final pellets is smooth, high in hardness and long-term storage.

It is an ideal equipment for raising rabbits, fish, chicken, pigs, sheep, cattle and small and medium-sized feed processing plants.

1. Simple structure, wide adaptability, small floor space and low noise.

2. The powdery feed and grass powder can be granulated without adding a little liquid, so the water content of the pellet feed is basically the moisture content of the material before granulation, which is more conducive to storage.

3. Higher economic benefits than mixed powdered feed.

4. Dry material processing,the production of feed pellets with high hardness, smooth surface and internal ripening can improve the digestion and absorption of nutrients.

5. The particle formation process can degenerate the resistance factor in grains and beans, reduce the adverse effects on digestion, kill various parasite eggs and other pathogenic microorganisms, and reduce various insect and digestive diseases.

Spare Parts of Animal Food Making Machine:

Flat die adopt high quality wear-resisting alloy steel, which are processed by special heat treatment, high hardness, long working life. It is recommended replace roller and die at the same time.

We have several diameter for your choice, and the size can be customized according to your requirements. You can choose 3mm, 4mm, 5mm, 6mm and so on according to your demands.

2mm for birds and aquaculture animals such as shrimp, small fish, crabs...

3mm for aquaculture, young chickens / ducks / rabbits / peacocks / aquatic etc.

4mm for breeding, chickens, ducks, fish, rabbits, pigeons, peacock birds, etc.

5mm for breeding pigs, horses, cattle, sheep, dogs and other domestic animals

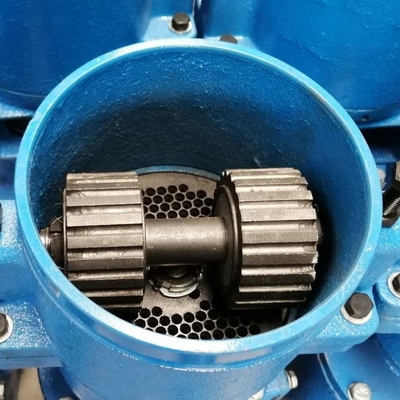

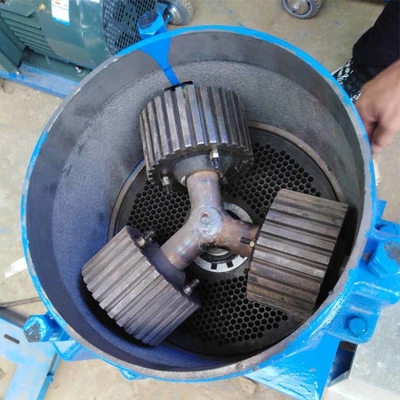

The rollers are made of wear-resisting alloy steel and processed by special heat treatment.The material is gelatinized between the roll and the template with high temperature and discharged from the die hole under the roll.

The hopper adopts thickening material to help strengthen it.

The main box adopts high quality welding structure to have low noise and shock-absorbing ability.

The electrical components adopt famous CHINT AND SIEMENS brands and processed by parkerising, acid pickling and spraying plastics. It is also designed with radiation structure.
