Product Details:
|
| Name: | Honey Comb Charcoal Powder Coal Powder Press Extruder Coal Charcoal Briquette Machine | Type: | Charcoal Briquette Machine |
|---|---|---|---|
| Warranty: | 12 Months | Voltage: | 380V 50hz |
| Dimension(l*w*h): | 1800*600*1600mm | Diameter Of Briquettes: | 50~80mm Customized |
| Spare Parts: | Screw Propreller,mold Cyclinder | Capacity: | 200-250kg/h |
| High Light: | 250kg/ h honeycomb briquette machine,Press honeycomb briquette machine,200kg/h charcoal powder briquette machine |
||

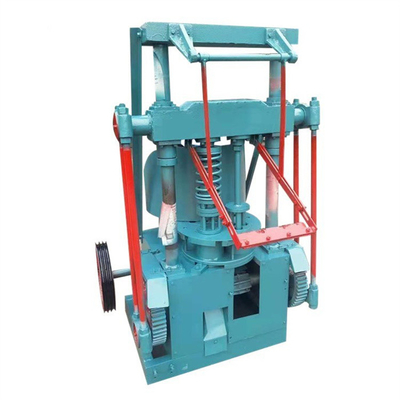

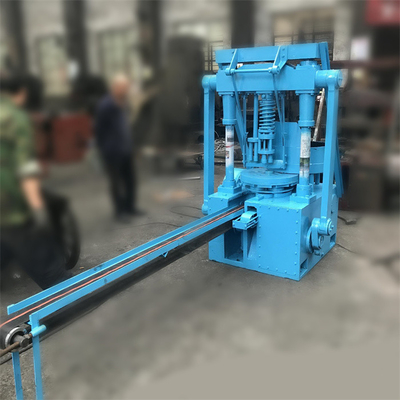

Honey Comb Charcoal Powder Coal Powder Press Extruder Coal Charcoal Briquette Machine
The Honeycomb briquette machine structure and principle is simple, divided into the body, rotation, feeding, punching, conveying five parts. All parts cooperate with each other, and the operation is coordinated and smooth.
We have two types briquettes machine for making coal/charcoal briquettes.
Extruding Type
this briquette machine capacity is smaller, but the working condition is stale. It could make different shape briquettes by changing mould, we also could match automatic cutter and conveyor for this machine, so it could work continuously, by adjusting cutter, it also could make different length briquettes.
Pressing Type
This briquette machine capacity is higher than pressing working type. Normally, this machine could make maximum briquettes length is 13cm, common length is 8-10cm. It also could make different shape briquettes by changing mould, the most popular shape is hexagon, round, square, honeycomb and etc.
| Honey Comb Charcoal Coal Briquette Making Machine Technology Parameter | ||||
| Working type | Model | Capacity for coal | Capacity for charcoal | Power |
|
Extruding Type
|
ET-1 | 200-250kg/h | 500kg/h | 11+0.55kw |
| ET-2 | 250-500kg/h | 500-1000kg/h | 18.5+1.1kw | |
| ET-3 | 1500kg/h | not suitable for charcoal | 22+3kw | |
|
Pressing Type
|
YM-140 | 1.86-2tons/h | 0.93-1ton/h | 7.5kw |
| YM-160 | 1.86-2tons/h | 0.93-1ton/h | 11kw | |
| YM-220 | 1.25tons/h | 2.5tons/h | 15kw | |
Raw Material Requirements:
(1) Raw material: All kinds of coal powder,charcoal powder,biomass materials.
It can be coal powder, charcoal powder, coke powder, carbon black powder, brown coal, many mineral powder, etc. It also can be biomass materials and agricultural materials like all kinds of straw, sawdust, wood, branches, shells, husks, biogases etc as raw materials to produce charcoal briquettes.
(2) Raw material diameter: Less than 3 mm.
(3) Raw material moisture: 8-15%.
(4) Add different binder according to your raw material and final briquettes requirements.(liquid and dry powder binder).

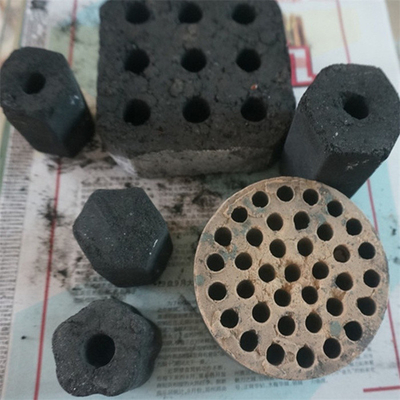

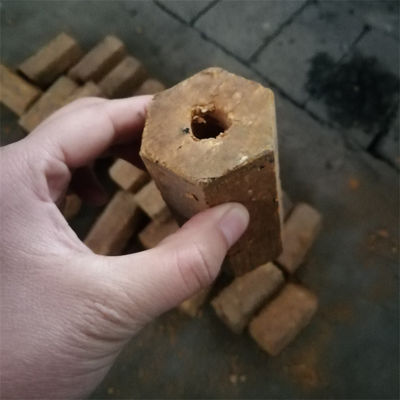

Finished Product
(1) Shapes of final briquettes: such as cylindrical,round, square, flower shapes
and fan-shaped, hexagonal shape,etc. Or we can custom moulds as your requirements.
(2) Honeycomb diameter: 120mm; 140mm; 160mm; 180mm; 220mm or custom-made diameter.
(3) Honeycomb height: 80±5.0mm;90±5.0mm
(4) Inside hole diameter is:14-16mm or 25mm.
(5) Hole number:16PCS ; 19PCS or required hole number.
(6) Binder formula: we have 6 kinds binder formula, we also can offer water-proof formula and instant ignite(combustion-improver) to our customers free of charge.
Advantages:
1. Good price with CE ISO certificate.
2. Strong structure,high briquetting ratio because the briquette machine excellent design it can be the single machine or whole production line.
3. Since the system out of the briquettes have desulfurization, reducing sulfur emissions, it is also conducive to environmental protection, the State Environmental Protection Agency emission reduction industry, civilian machinery.
