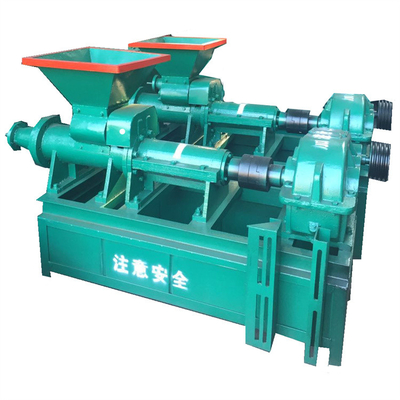

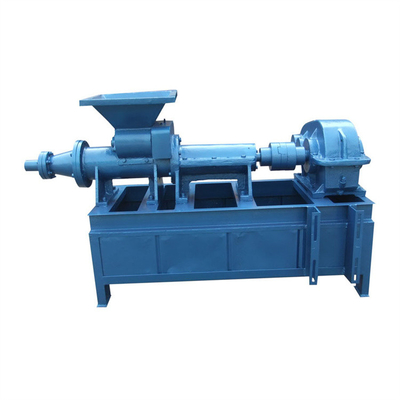

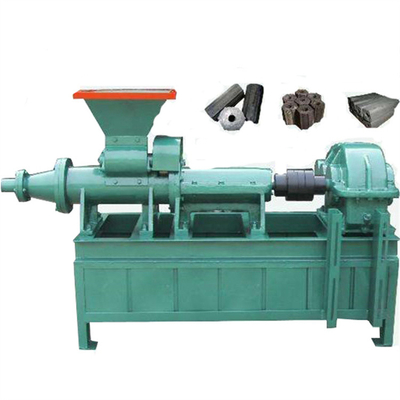

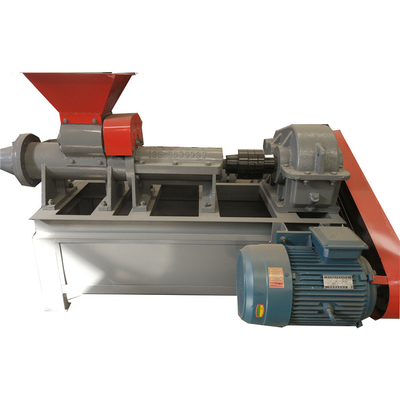

Wood Sawdust Waste Chips Charcoal Briquette Machine 11kw Extruder Type

I'm Online Chat Now

Wood Sawdust Waste Chips Charcoal Briquette Machine 11kw Extruder Type

Wood Sawdust Waste Chips Charcoal Briquette Machine 11kw Extruder Type
Wood Sawdust Waste Chips Charcoal Briquette Machine 11kw Extruder Type Wood Sawdust Waste Chips Charcoal Briquette Machine 11kw Extruder Type Wood Sawdust Waste Chips Charcoal Briquette Machine 11kw Extruder Type Wood Sawdust Waste Chips Charcoal Briquette Machine 11kw Extruder Type

Large Image :  Wood Sawdust Waste Chips Charcoal Briquette Machine 11kw Extruder Type

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: 140,180,300,450
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $2000.00 - 2400.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

Wood Sawdust Waste Chips Charcoal Briquette Machine 11kw Extruder Type

Description
Name: Wood Sawdust Waste Chips Charcoal Briquette Machine Bbq Briquette Making Machine Type: Waste Chips Charcoal Briquette Machine
Warranty: 12 Months Power: 11kw
Dimension(l*w*h): 1800*600*1600mm Weight: 750 KG
Diameter Of Briquettes: 50~80mm Customized Spare Parts: Screw Propreller,mold Cyclinder
High Light:

Waste Chips Charcoal Briquette Machine

,

11kw sawdust briquette making machine

,

wood dust briquetting machine extruder

wood sawdust waste chips charcoal briquette machine bbq briquette making machine



briquette charcoal making machine is to carbonize the raw material crush the wood firstly, next to crush the material, and to mix and stir with the wheel mill. Then put the materials into the energy saving shisha coal and charcoal extruder machine to get the charcoal rods.

wood sawdust waste chips charcoal briquette machine bbq briquette making machine

Different models of coal briquette make machine

Model Style 140 180 300 450
Capacity 1-2tons/hour 2-3tons/hour 3-5tons/hour 8-12tons/hour
Power 11kw 22kw 90kw 220kw
Diameter of briquette 18-80mm ( buyer need tell us what diameter you need )
Speed 60rpm 60rpm 132rpm 132rpm
Spiral impeller diameter 120mm 160mm 270mm 420mm
Size 1.9*1.1*1.17m 2.2*1.37*1.44m 3.6*1.4*1.45m 5.13*1.52*1.5m
Raw materials size <3mm



Main Features of briquette charcoal making machine

1. The machine has the advantages of reasonable design, reliable quality, simple structure, convenient operation, small size, small occupation area, labor saving and electricity saving.

2. The auto-control electric heating device can adjust the dry humidity of the materials, ensure the stability and improve the working efficiency.

3. The main parts of the machine with a kind of special wear-resistant material can be continuously produce.

4. The machine is suitable for all kinds of raw materials of biomass briquetting with less energy consumption and high efficiency.

5. The machine now has improved adding one bearings into the traditional ones, which makes the machine more stable and durable.

6. The ways of lubrication has improved from basting to immersing so that the oil can be used for many years as long as it is enough.

7. The pitch has increased to improve the amount of feed so as to greatly improve the output.



Application of the briquette charcoal making machine

Wood, rice husk, peanut shell, straw and other carbon containing wood material (without any additives) can be made into rodlike solid fuels under the condition of high pressure and high temperature.The kind of machine can crush the particulate waste materials(length≦5mm, diameter≤3mm)the water content <12% of bamboo, wood, husk, straw(except rice straw, wheat straw)into solid hollow rods without any binders under the high temperature and high pressure.



Complete biomass briquette charcoal making line

A: crush raw materials into size less than 1cm

B: raw materials moisture more than 12% , need use dryer ( less than 12% no need)

C: briquette extruder machine press it to get briquette ,which with density 900-1400kg/m

D: carbonize furnace change briquette into charcoal briquette



Packing of the briquette charcoal making machine

Inner package of wood sawdust waste chips briquette charcoal making machine price: plastic packing
Outside package of wood sawdust waste chips briquette charcoal making machine price: wooden case

Delivery of the wood sawdust waste chips briquette charcoal making machine price
Within 20 days after the order
