Product Details:
|
| Name: | Wood Chip Brick Briquettes Press Machine Sawdust Straw Husk Charcoal Briquette Machine For Straw Briquettes | Type: | Wood Chip Brick Briquettes Press |
|---|---|---|---|
| Warranty: | 12 Months | Power: | 15kw |
| Dimension(l*w*h): | 1800*600*1600mm | Weight: | 520 KG |
| Diameter Of Briquettes: | 50~80mm Customized | Spare Parts: | Screw Propreller,mold Cyclinder |
| High Light: | wood chip briquettes press machine,sawdust brick maker OEM,sawdust briquette press energy saving |
||

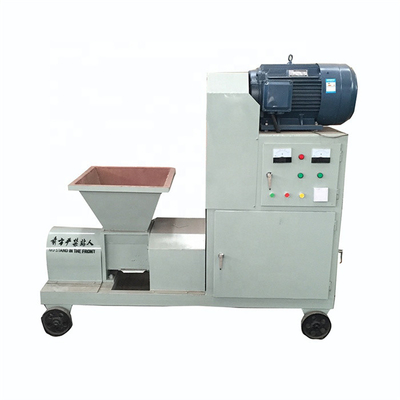

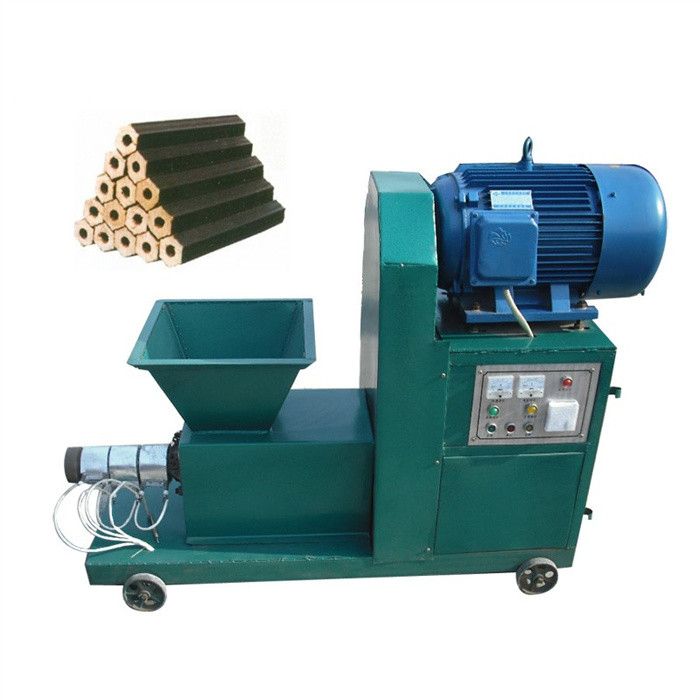

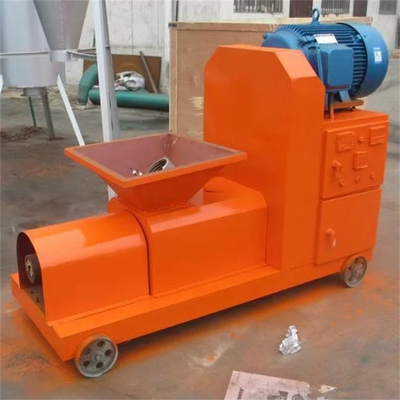

Wood Chip Brick Briquettes Press Machine Sawdust Straw Husk Charcoal Briquette Machine For Straw Briquettes
This charcoal briquette machine mainly is using the rural corn stover, corn cobs, branches, leaves, sawdust as raw material to produce charcoal. The charcoal machine can process all kinds of straw and branch into the high efficiency charcoal.
Specification of briquette machine:
| Model | MK150 | MK185 | MK220 |
| Power | 15kw | 18.5kw | 22kw |
| Capacity | 160-200kg/h | 180-250kg/h | 300-350kg/h |
| Heating power | 2kw+2kw | 2.5kw+2.5kw | 2.5kw+2.5kw |
| Briquette diameter | 48-55mm | 48-55mm | 48-60mm |
| Inner hole diameter | 15mm | 15mm | 15mm |
| Briquette length | 40-50cm | 40-50cm | 40-50cm |
| Moisture content | 8%-12% | 8%-12% | 8%-12% |
| Weight | 520kg | 580kg | 780kg |
| Packing size | 170*66*150cm | 180*73*160cm | 160*120*160cm |
Feature of charcoal making machine
The process for charcoal making machine price as follow:
a. Crush the raw material into small pieces (diameter is about 3-5mm).
b. Dry the material by machine or dried it in the sun, till the moisture is less than 12%.
c. Put the material into feed let of briquette machine.
d. Produce the briquette stick from biomass material without any additive.
e. Carbonized the briquette stick.
Raw Material
( Size: 3-5mm Moisture Content : 8%-12% )
1.straw 2.sugarcane residue 3.coffee husk 4.cotton stalks 5.tobacco waste 6.mustard stalk 7.jute waste 8.bamboo dust 9.tea waste 10.wheat waste 11.palm husk 12.soybeans husk 13.rice husk 14.wood chips 15.agro waste
It's easy to run a briquette plant with screw briquetting machine and always with low cost. Normally the briquette line will be with these kinds of machines:
1. Crusher: A crusher will help you to reduce the size of your raw material to proper size (normally less than 5 mm).
2. Dryer: For small capacity drying, you can choose the air flow dryer with small investment as well, if your capacity is bigger, a rotary dryer will be a better choice.
3. Briquette machine: This is how you make the raw material into briquette.
4. Other accessories: Conveyor, material distributor, etc.
Finished product of the Wood chips briquette machine
This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm hole through the body.
The available shape:square, hexagonal, pentagon, pentagon with edge, hexagon with edge
The available diameter could be: 50mm,55mm.60mm,65mm.70mm.80mm and so on
The available length could be :20cm,30cm, 40cm, 50cm
The feature of the final product : Specific gravity: 1300—1900kg/m
Calorific value: 4500—5000kcal/kg
