Product Details:
|
| Name: | Shisha Scrap Charcoal Briquette Machine Cube Compress Hard Wood Coal Production Machine | Type: | Wood Coal Production Machine |
|---|---|---|---|
| Warranty: | 12 Months | Power: | 7.5kw |
| Dimension(l*w*h): | 1800*600*1600mm | Weight: | 750 KG |
| Diameter Of Briquettes: | 50~80mm Customized | Spare Parts: | Screw Propreller,mold Cyclinder |
| High Light: | CUBE Charcoal Briquette Machine,Shisha charcoal briquette machine hexagon,wood coal making machine 12CM |
||
shisha scrap charcoal briquette machine cube compress hard wood coal production machine
Charcoal briquette making machine is a main equipment which is made of wood, rice hull, peanut shell, plant straw and other carbon containing wood materials (without adding any additives), and is made into rod solid fuel under high pressure and high temperature.
This machine can produce different shape,include hexagon shape,square shape,finger shapeThe normal length is 10-12 cm,the diameter is 5cm;the length can be adjusted by the Infrared sensor probe,adjust the distance between the probe and the mold.
Working principle of charcoal briquette making machine
Charcoal briquette making machine is using sawdust, straw (corn straw, soybean straw, sorghum straw, cotton stalk, rape straw, peanut, sunflower stalk), rice husk, grasses, shrubs, bamboo head, butts, such as bagasse as raw material, high temperature and high pressure area is formed after wood crusher in the spiral propulsion device and the heating ring under the action of loose material into the hollow rod. The product has high density, small size, good flammability, and can replace firewood and coal. The general products outside diameter 50-60mm, diameter 15-20mm, hollow four or six angle form. It can also be made into spherical, granular and honeycomb coal.
| Model | LB-140 | LB-180 | |
| Capacity | Charcoal Briquette | 300Kg/Hour | 400-600Kg/Hour |
| Coal Briquette | 1000-2000Kg/Hour | 2000-3000Kg/Hour | |
| Motor Power | 7.5Kw | 22Kw | |
|
Raw Materials Size for Feeding |
Powder | ||
|
Feeding Moisture Content |
35-40% | ||
| Solid Briquettes Diameter | Min—5mm Diameter; Max—100mm Diameter. | ||
| Hollow Briquettes Diameter | Min—6mm Diameter; Max—100mm Diameter. | ||
| Final Shapes | Cylinder, Square, Hexagon, Quincunx (Selectable) | ||
| Machine Size(L*W*H) | 2*0.8*1.16Meter | 2.32*1*0.89Meter | |
| Machine Weight | 850Kg | 1200Kg | |
This machine has advantages of convenient operation, high output and other advantages;It can produce different shape,change the mould is ok.The normal shape is hexagon shape ;the length is 10-12cm,diameter is about 5 cm.
For this machine you can used charcoal/coal powder;Cow dung;Grass powder;Oil residue and so on as raw material.

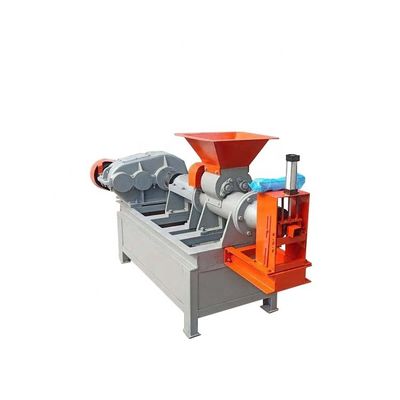

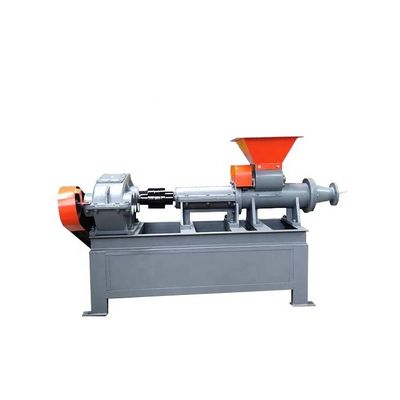

This machine has motor,v-belt,transmission machine,shaft,feeding inlet,propel screw,mould.The work process of this machine is The motor drive the v-belt drives transmission machine and the shaft,the will drives the screw,screw push the material into the mould,then can produce the charcoal briquette.
