Product Details:
|
| Name: | Wood Sawdust Pellet Press | ITEM: | Wood Biomass Pellet Machine |
|---|---|---|---|
| Weight (KG): | 2000 | Die: | Double Layer, Both Can Be Used |
| Driven Type: | Motor ,diesel Engine | Lubrication System:: | Use Recycling Lubrication Oil |
| Wood Pellet Size: | 6mm,8mm,10mm | Warranty: | 1 Year |
| Raw Material: | Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton | Die Material: | Stailness Steel 4Cr13 |
| Show Room: | Viet Nam, Indonesia | Key Selling: | Easy To Operate |
| Voltage: | Customized | Certificate: | CE ISO |

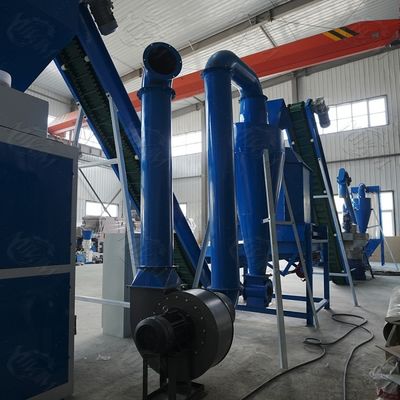

| Dust Remove System: | Cyclone And Bag Dust, To Remove The Dust | Capacity: | 800-1000kg/h |
| High Light: | wood pellet press machine 2.6*1.3*2.3m,rice husk pellet mill 2.6m,0.8cm pine wood pellet machine |
||

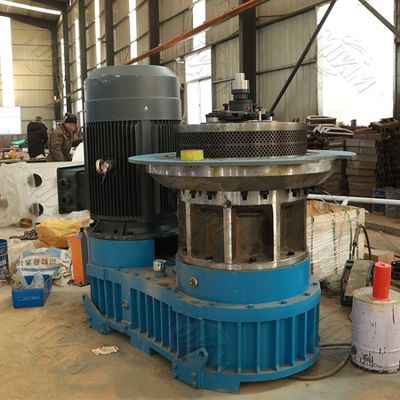

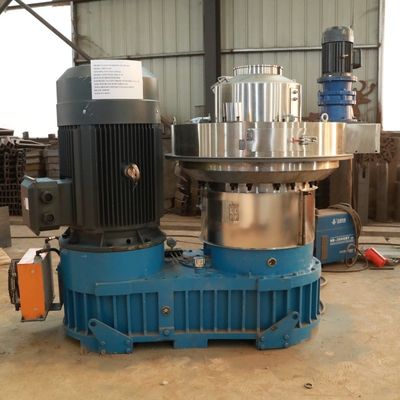

wood biomass pellet machine is a new biomass fuel production machinery by using crushed sawdust . Compared with the old machine, it obsorbed the essence of horizontal ring die and flat-die Pellet Mill Machine, solved the insufficient pressure, die crack problems of horizontal ring die pellet machine, and overcame the small capacity, high failure rate of flat die wood. pellet making machine.
Raw material: wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree), bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagrass, palm fiber, waste paper, non-physical material
Size:2-4mm (All the raw materials must be crushed into sawdust before going
to wood pellet machine.If not, you may need a wood chipper, wood crusher.)
Moisture: Generally, 10-15% is best for producing good quality wood pellet.
How to design Wood log pellet line?
wood log is the most common raw material for making wood pellets.
So, how to design a suitable wood pellet production line with wood log as raw material?
First, a drum wood chipper is used to chip wood log into small size wood chips with 2.5-3.5cm.
After that, hammer mill/wood crusher is used to grind wood chips into sawdust (6-12mm).
Sometimes, a dryer is need ,as usually the MC of wood log is always about 30-50%,Under this condition, a dryer is need.
Then, a vertical ring die wood pellet mill machine is used to press dried, wood sawdust into good quality wood pellets.
| Model | Power (kw) |
Capacity for wood pellets(kgs/h) |
Weight of the machine(kgs) |
Dimension of the machine (mm) |
| KL-560 | 90+1.5+0.37+1.5 | 1000-1500 | 6100 | 2600x1300x2300 |
| KL-850 | 220+3+0.37(0.55)+2.2 | 2000-3000 | 14500 | 3300x1400x3100 |
| KL-920 | 315+5.5+0.55+1.5+2.2 | 3000-4000 | 18000 | 3800x1680x3400 |
The advantages of buying equipments in our company are:
1. a full range of design, construction, equipment supply, construction, installation supervision and commissioning, staff training;
2. license for the design, construction, installation, wiring, and other works;
3. full certification of equipment;
4. officially registered trade mark;
5. full warranty, post warranty and service;
6. warranty on all equipment - 13 months;
7. ratio price-quality-assurance;
8. vast project experience. we have established and put into operation so many of pellet plant productivity on the finished product from 0.5 to 20 t / h in Malaysia, Thailand, Vietnam, Germany, France, Bulgaria, Serbia, Romania, Korea, Australia etc;
9. large stock of finished equipment and spare parts;
10. all equipment of our production, equipped with electric motors and gearboxes, that made in big company
