MIKIM Floating Fish Feed Pellet Making Machine 260mm 550KG/ H

I'm Online Chat Now

MIKIM Floating Fish Feed Pellet Making Machine 260mm 550KG/ H

MIKIM Floating Fish Feed Pellet Making Machine 260mm 550KG/ H
MIKIM Floating Fish Feed Pellet Making Machine 260mm 550KG/ H
MIKIM Floating Fish Feed Pellet Making Machine 260mm 550KG/ H MIKIM Floating Fish Feed Pellet Making Machine 260mm 550KG/ H MIKIM Floating Fish Feed Pellet Making Machine 260mm 550KG/ H MIKIM Floating Fish Feed Pellet Making Machine 260mm 550KG/ H

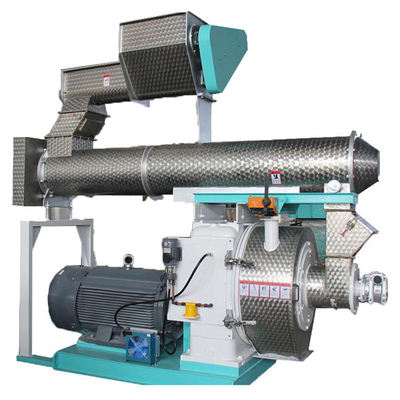

Large Image :  MIKIM Floating Fish Feed Pellet Making Machine 260mm 550KG/ H

Product Details:
Place of Origin: China
Brand Name: MIKIM
Certification: CE
Model Number: BH-150 BH-210 BH-260 BH-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $480.00 - 2300.00/ Set
Packaging Details: packed by wooden export package or loading by container
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets per month

MIKIM Floating Fish Feed Pellet Making Machine 260mm 550KG/ H

Description
Name: New Design Floating Fish Feed Pellet Making Machine Manufacturing Extruder Processing Equipment Plant Application: Poultry Farm
Voltage: 380V Capacity: 550KG/H
Weight: 300kg Dimension(l*w*h): 115*45*95CM
Advantage: High Efficiency Easy Operation Final Product: Feed Pellet
Function: Pellet Processing Machine Spare Parts: Flat Die+ Rollers
High Light:

MIKIM floating fish feed pellet making machine

,

floating fish feed pellet machine 260mm

,

floating pellet machine 550KG/ H

new design floating fish feed pellet making machine manufacturing extruder processing equipment plant

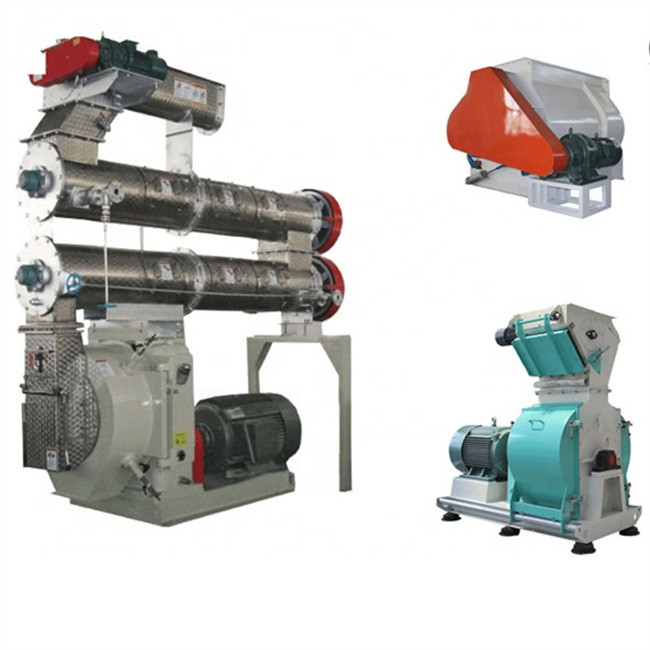

Picture of Automatic pet food extruder machine:

The machine has excellent performance and final product has high quality. Sincerely welcome you come to our factory inspect the machinery.
Stainless steel, this line is with reasonable design and with high automation; The screws are made
by alloy steel, with building block system structure and self-cleaning function.

Advantages of cat feeding machine:
1. Simple structure, easy to clean and maintain.
2. Spare parts are easy to change, less cost for rollers and dies.
3. Simple operating, just 1 or 2 workers are OK.
4. Be able to change new die and rollers faster to save time to produce pellets.
5. Small and light weight, which can be used in home,small farm and light industrial.
6. Visibility to viewing the material during pelleting is the best way to fix problems.


Product Paramenters
Model
Voltage
Power
Dia diameter
Capacity
Pellets size
Packing size
Weight
BD-KL125
220V/380V
3KW
125MM
80-100kg/h
3-10mm
750*320*650mm
100kg
BD-KL150
220V/380V
3KW
150MM
100-150kg/h
3-10mm
750*350*650mm
160kg
BD-KL210
380V
7.5KW
210MM
200-300kg/h
3-10mm
1000*430*950mm
230kg
BD-KL260
380V
11KW
260MM
400-600kg/h
3-10mm
1200*500*1070mm
360kg
BD-KL300
380V
18.5KW
300MM
700-800kg/h
3-10mm
1270*520*1070mm
450kg
BD-KL360
380V
22KW
360MM
800-1000kg/h
3-10mm
1270*520*1070mm
500kg
BD-KL400
380V
30KW
400MM
1000-1200kg/h
3-10mm
1470*600*1150mm
585kg
Operation of Poultry Feed Pellet Machine
1: Add oil into gearbox before start.
2:Double-check the belt and the screws before operation.
3:Clean up the rest after use to prevent damage to the machine.
Notice
1, Iron or stones cannot be put into the griller.
2:Check the elasticity of the belt, and the bearing frequently. Add oil in time when it needs to.


Application of animal feed pellet machine

Animal feed pellet machine is widely used in large, medium and small aquaculture, grain and feed processing plants, livestock farms, poultry farms, individual farmers and small and medium-sized farms, farmers or large, medium and small feed processing plants.

Final animal feed pellets

Pellets diameter 3-12mm is available.
One machine can produce different diameter of pellets by changing the molds.MIKIM Floating Fish Feed Pellet Making Machine 260mm 550KG/ H 0


Advantages of cat feeding machine:
1. Simple structure, easy to clean and maintain.
2. Spare parts are easy to change, less cost for rollers and dies.
3. Simple operating, just 1 or 2 workers are OK.
4. Be able to change new die and rollers faster to save time to produce pellets.
5. Small and light weight, which can be used in home,small farm and light industrial.
6. Visibility to viewing the material during pelleting is the best way to fix problems.


Packing&Shipping
* Inside package is plastic film, outside is wooden or plywood case(based on the customers'need).
* Only plastic film nude packing with wooden pallet.
* We can supply fumigation package and certificate.
* Shipping, train, express or accordint to clients' demands.


Matters need attention
1. The new machine for the first time must be run or otherwise can't be used normally.
2. When the pellet machine is working, don't reach into the input hopper by hand. If necessary, you can use a stick to help.
3. Before the machine is turned on, you need to add a little mixture before starting. When the machine is shut down, please leave a little mixture in the machine to prevent the roller and the template idling.
4. When the machine is working, and the phenomenon of stuck happens, should immediately stop and make the roller pressed to the bolt loose, and then restart the machine.
5. Each time the work is completed, the bolt of adjusting roller must be released.
6. If the machine is used for a certain period of time or squeeze out a certain amount of pellets and the pellets are made into pieces or the pellets are broken, the template should be turned to the bottom, and 2%-4% water should be added to the mixture.
7. Please often check the belt tightness to prevent the emergence of low yield, belt slippery and so on.
8. Before starting, firstly add gear oil to the gearbox reaching to 2/3 of the horizontal axis. Pellet machine in the first use should work in low load for 40 hours or so, and then replace the gearbox gear oil, 100 hours after the regular replacement. All bearings should be regularly filled with grease.
9. Particle machine works continuously and then the motor fever reaches to 70 degrees Celsius, it is a normal phenomenon.
